1964 Chrysler Dealership Data Book
Engines, Transmissions & Chassis

If you were able to order your car new at your local dealership back when our cars were new, your ever-friendly salesman likely would have sat down with you and paged through one of these books with you. They typically show some of the major options and option groups available for each model line along with some photos. They were not meant to be a "complete" list of options, and since they were printed just as the new model year began these books do contain some errors at times.
Like just about everything here at HH, this section will be a work in progress and other data books will be added as time goes on.

Special thanks to SuperB & Doug Hammer! SuperB let Doug borrow this book so he could scan it for us, thanks guys!

MODELS, PRICING & OPTIONS ENGINES, TRANSMISSIONS & CHASSIS BODY DATA

CLICK ON IMAGES TO ENLARGE
Image: 64_Chry_Impl_Engine_trans_Specs_0001

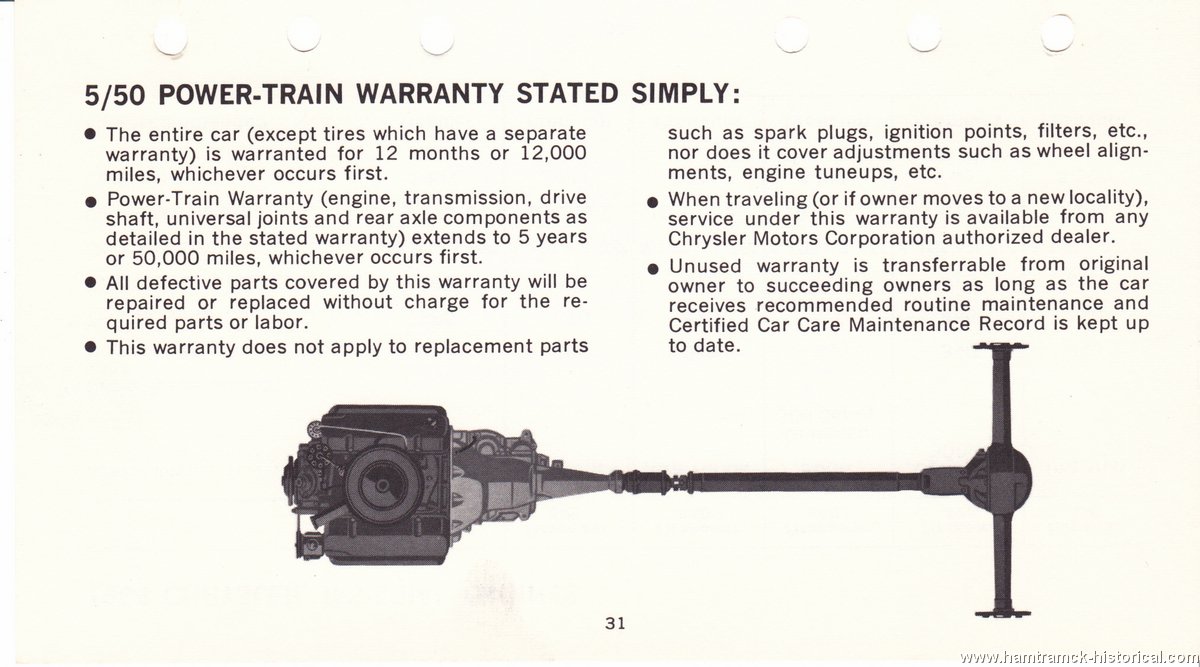

50-50 Power-Train Warranty Stated Simply
Image: 64_Chry_Impl_Engine_trans_Specs_0002

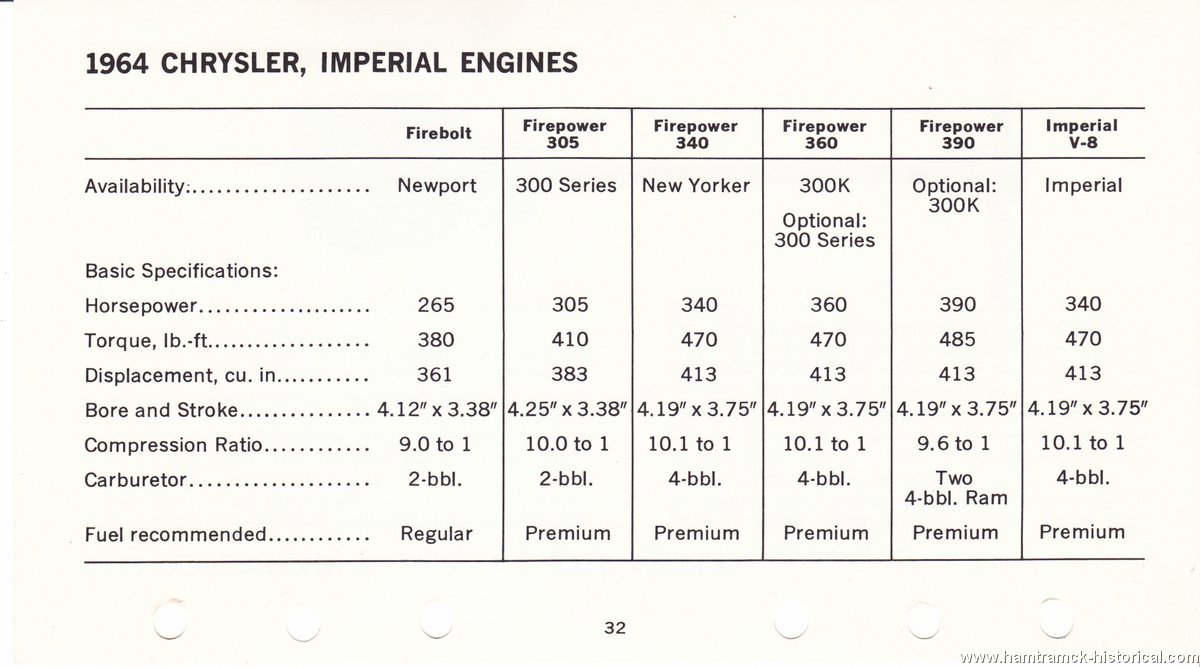

Chrysler, Imperial Engines

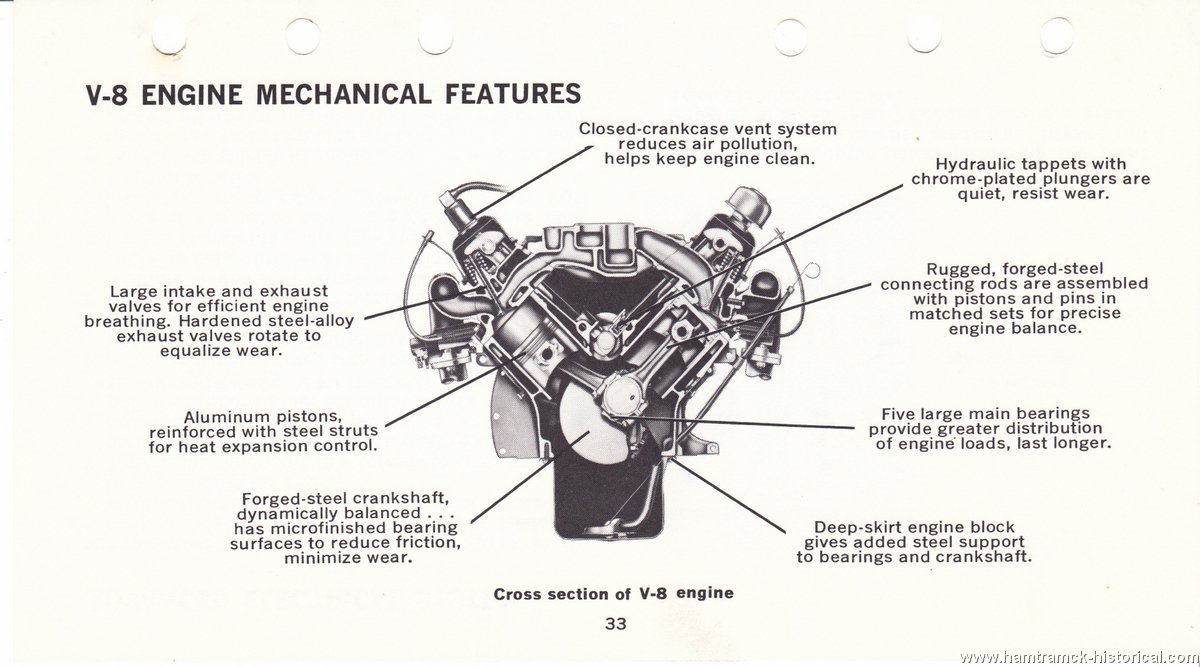

Image: 64_Chry_Impl_Engine_trans_Specs_0003
V-8 Engine Mechanical Features
Image: 64_Chry_Impl_Engine_trans_Specs_0004

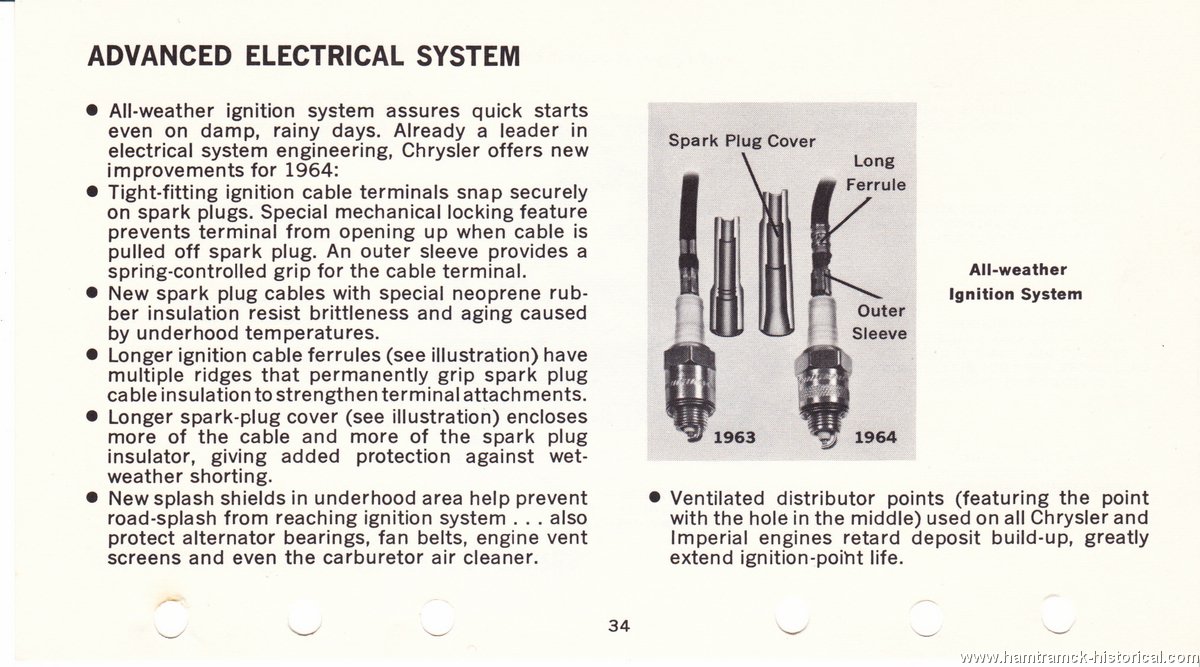

Advanced Electrical System

Image: 64_Chry_Impl_Engine_trans_Specs_0005

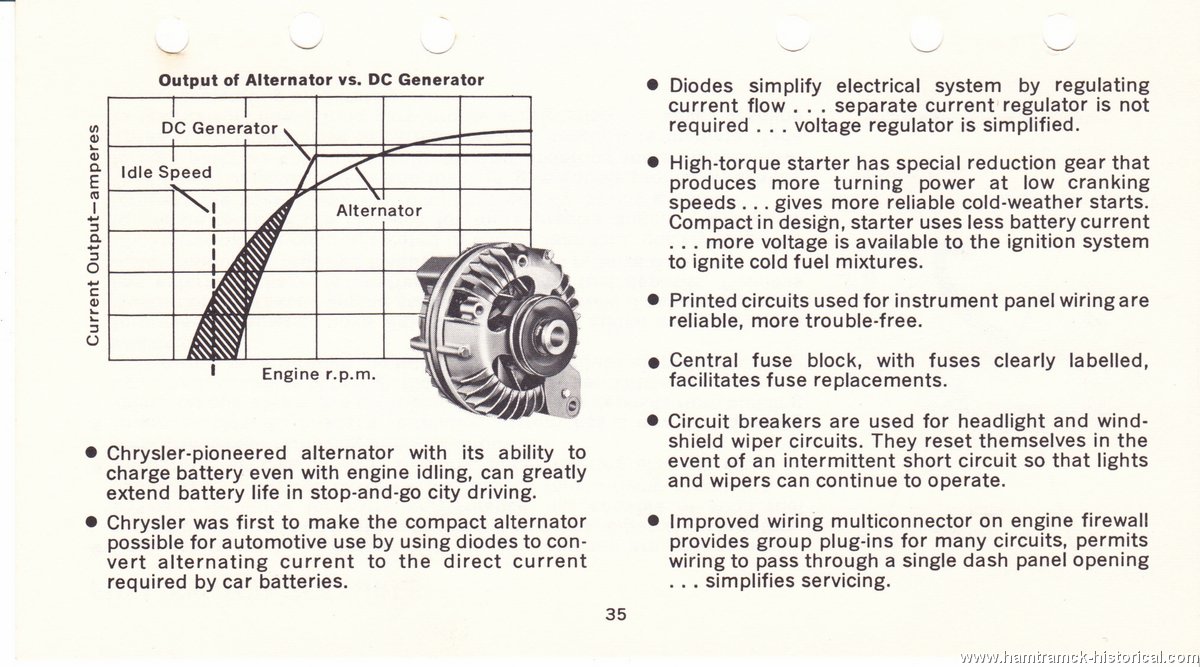

Output of Alternator vs. DC Generator
Image: 64_Chry_Impl_Engine_trans_Specs_0006

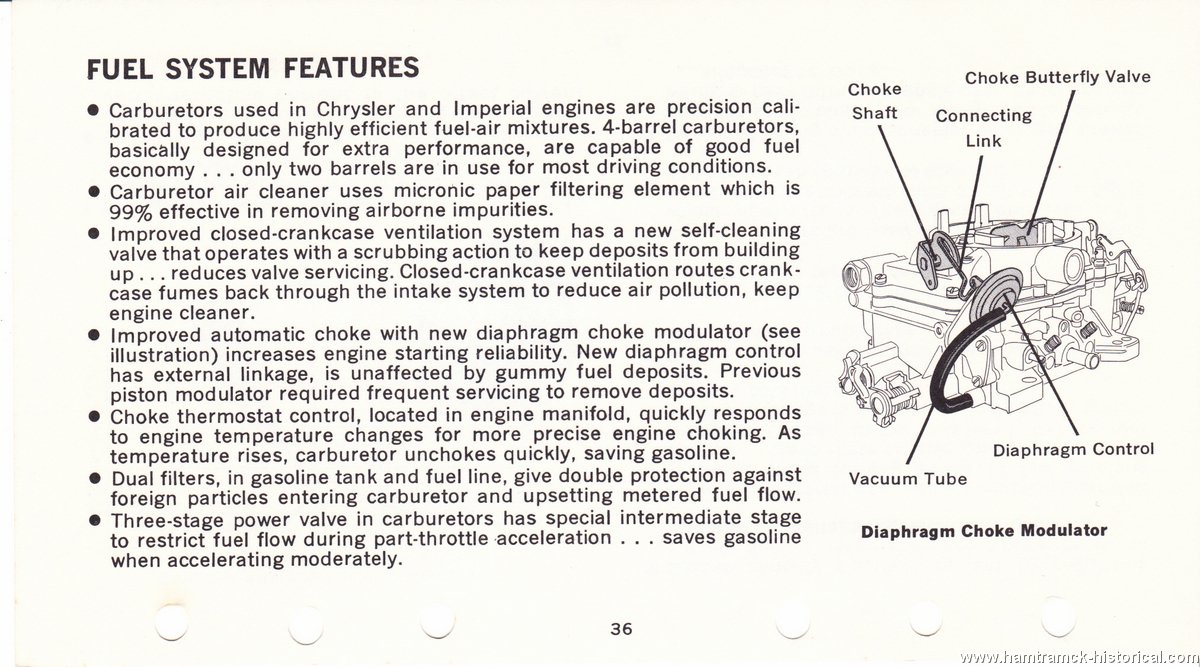

Fuel System Features
Image: 64_Chry_Impl_Engine_trans_Specs_0007

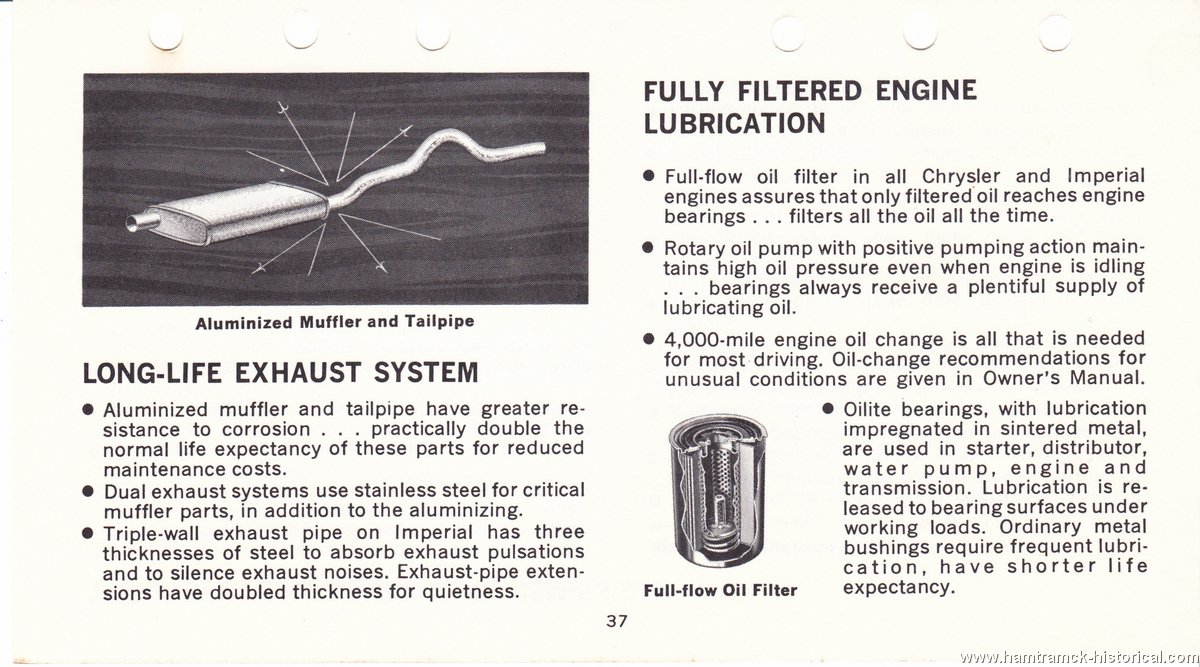

Long-Life Exhaust System and Fully Filtered Engine Lubrication
Image: 64_Chry_Impl_Engine_trans_Specs_0008
Torqueflite Automatic Transmission

Image: 64_Chry_Impl_Engine_trans_Specs_0009

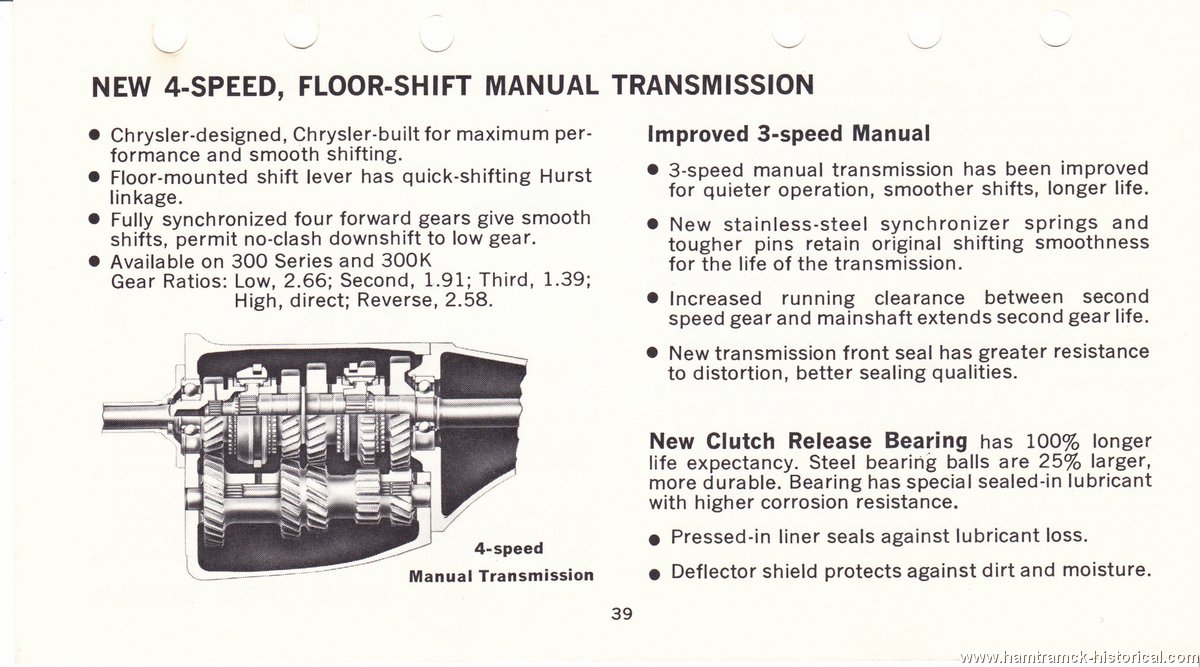

New 4-speed, Floor-Shift Manual Transmission
Image: 64_Chry_Impl_Engine_trans_Specs_0010

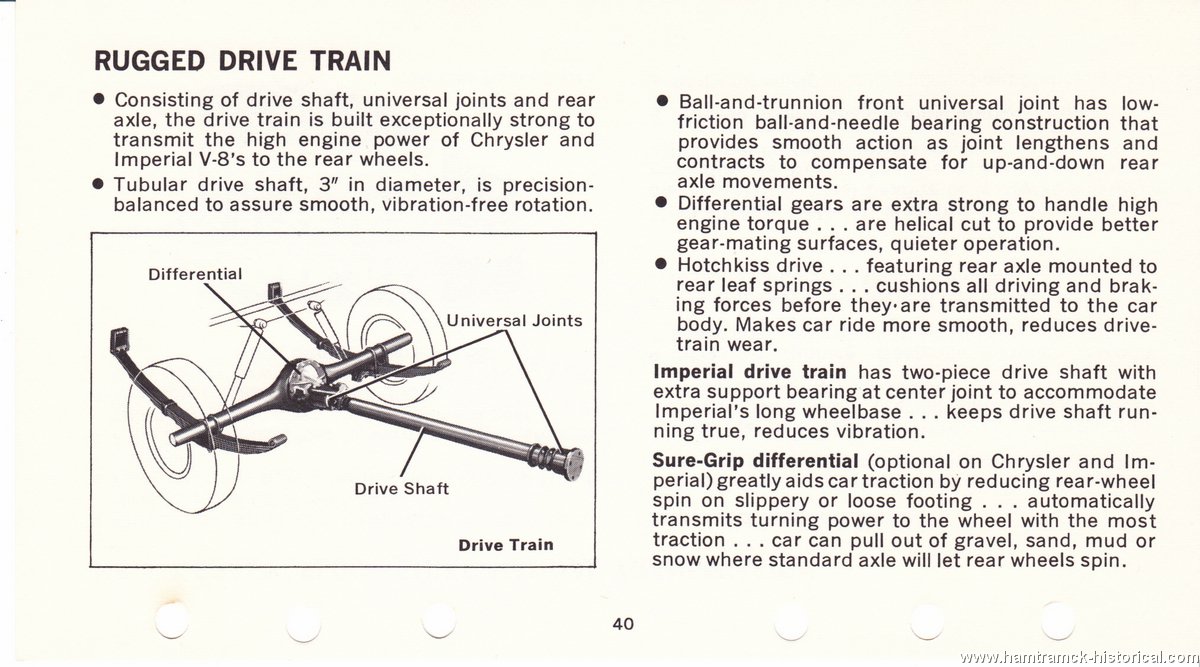

Rugged Drive Train
Image: 64_Chry_Impl_Engine_trans_Specs_0011

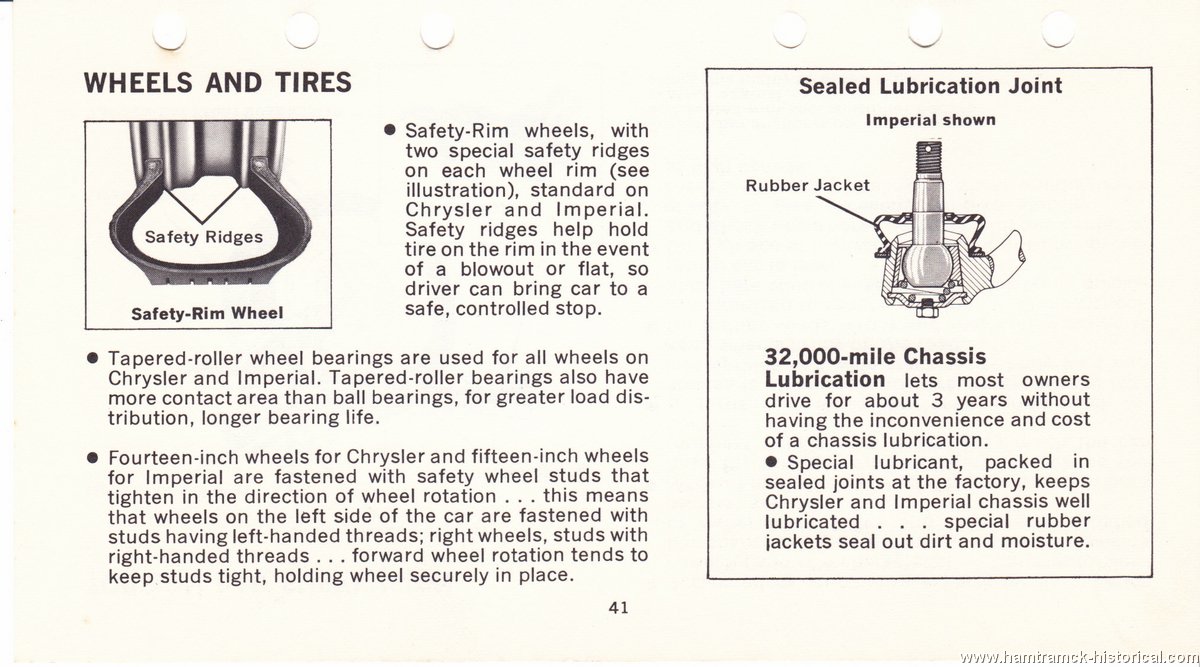

Wheels and Tires

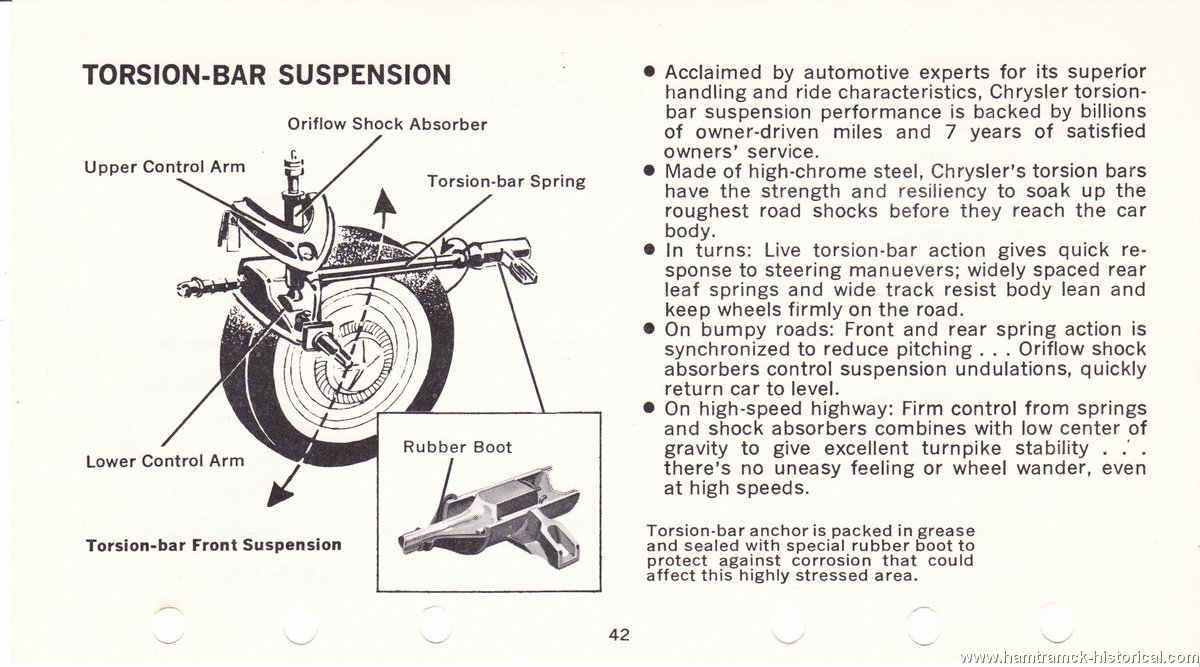

Image: 64_Chry_Impl_Engine_trans_Specs_0012
Torsion-Bar Suspension

Image: 64_Chry_Impl_Engine_trans_Specs_0013

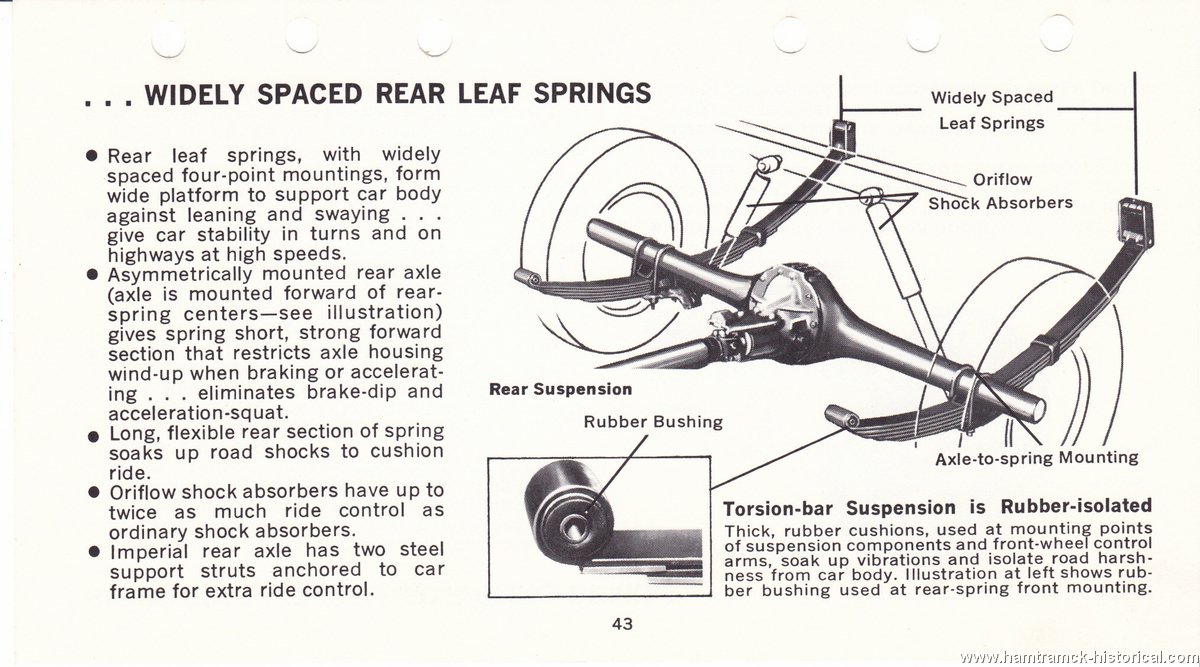

... Widely Spaced Rear Leaf Springs
Image: 64_Chry_Impl_Engine_trans_Specs_0014

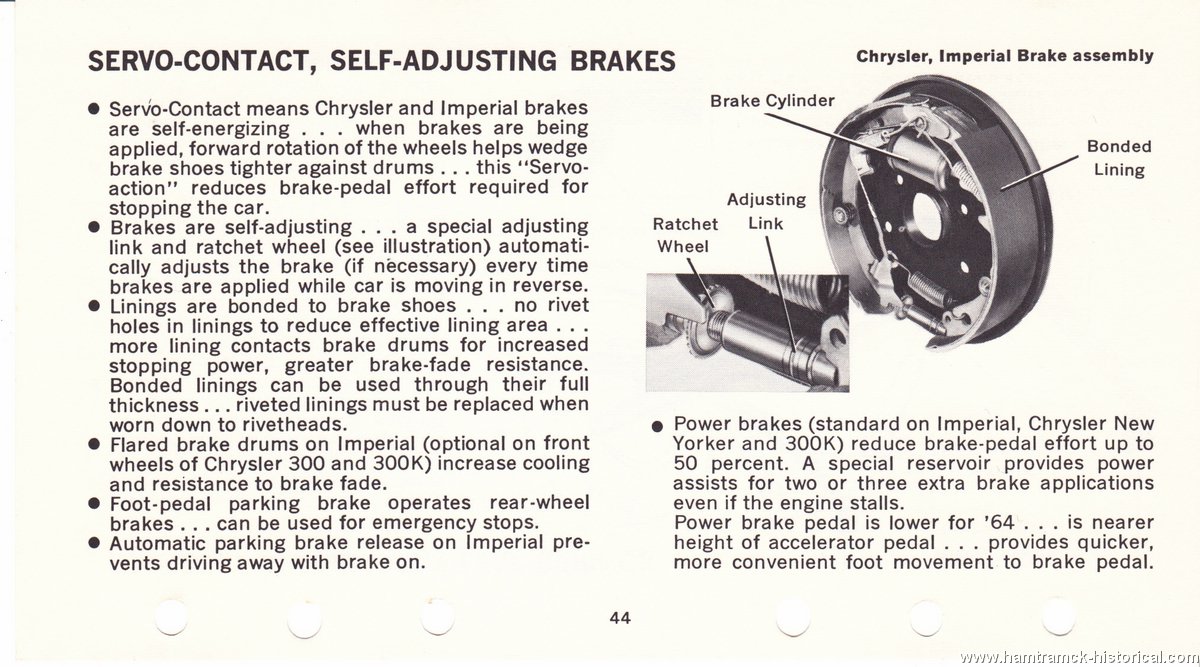

Servo-Contact, Self-Adjusting Brakes

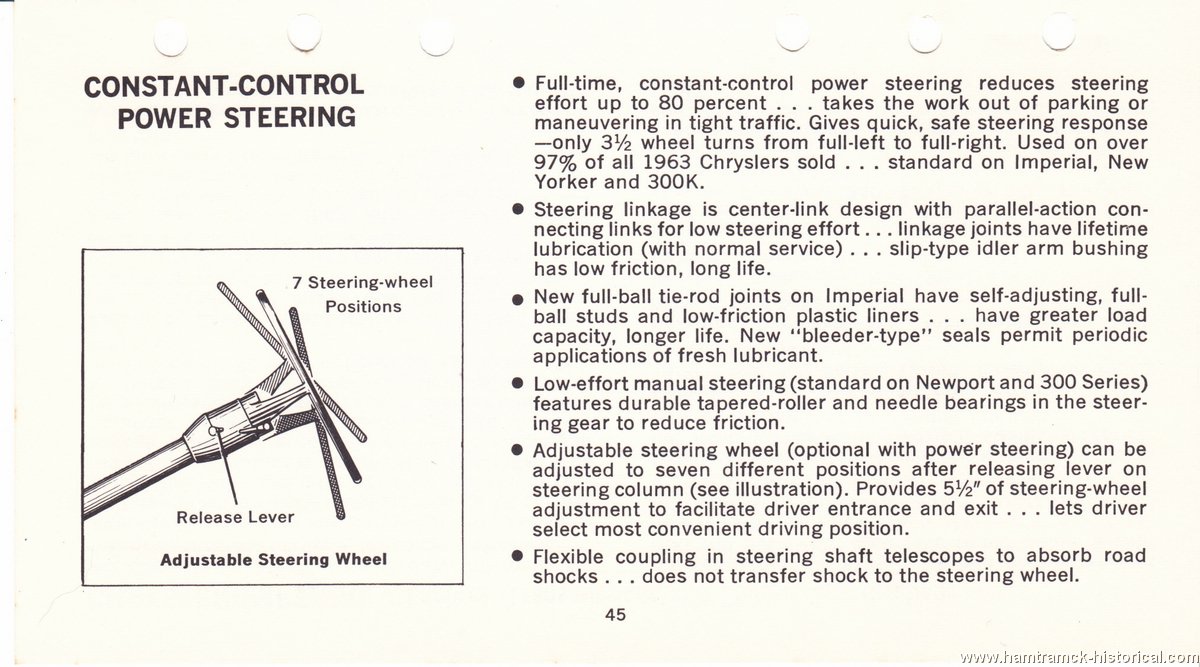

Image: 64_Chry_Impl_Engine_trans_Specs_0015
Constant-Control Power Steering
Image: 64_Chry_Impl_Engine_trans_Specs_0016

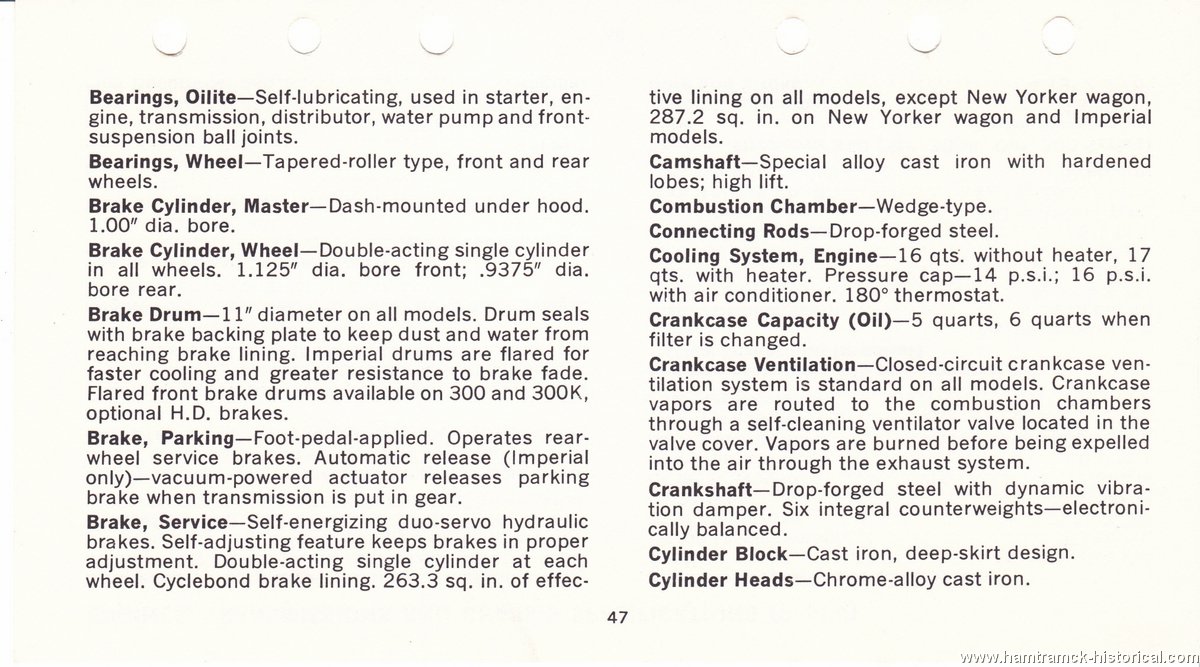

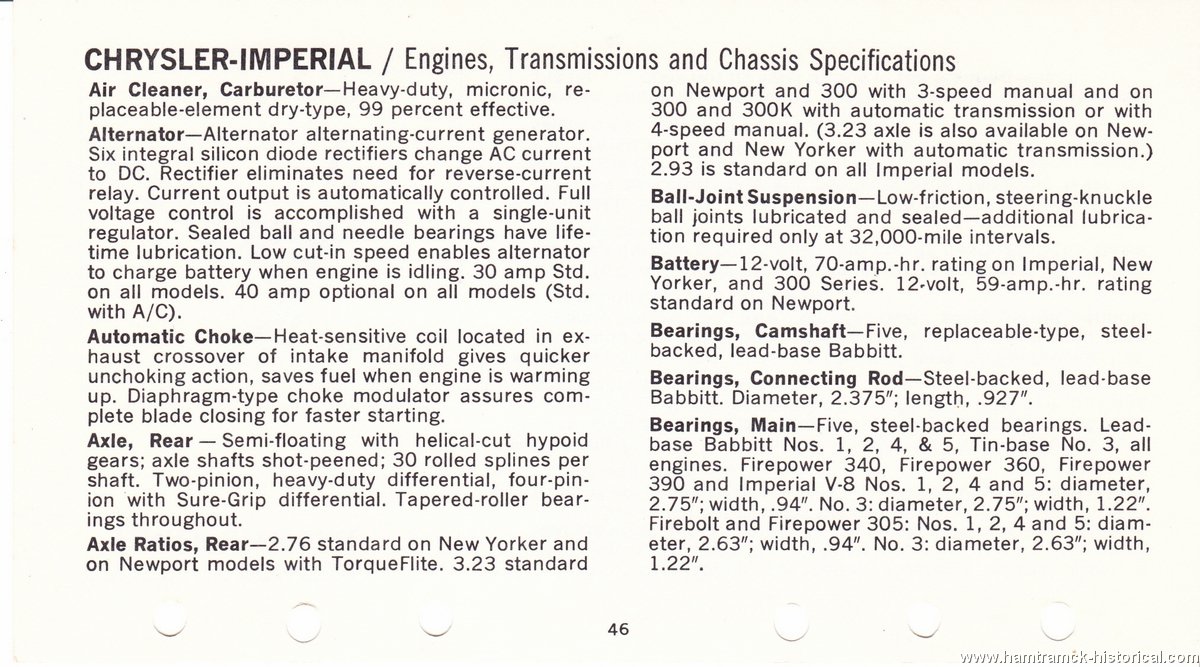

Chrysler-Imperial/ Engines, Transmissions and Chassis Specifications (A-B)

Image: 64_Chry_Impl_Engine_trans_Specs_0017
Chrysler-Imperial/ Engines, Transmissions and Chassis Specifications (B-C)

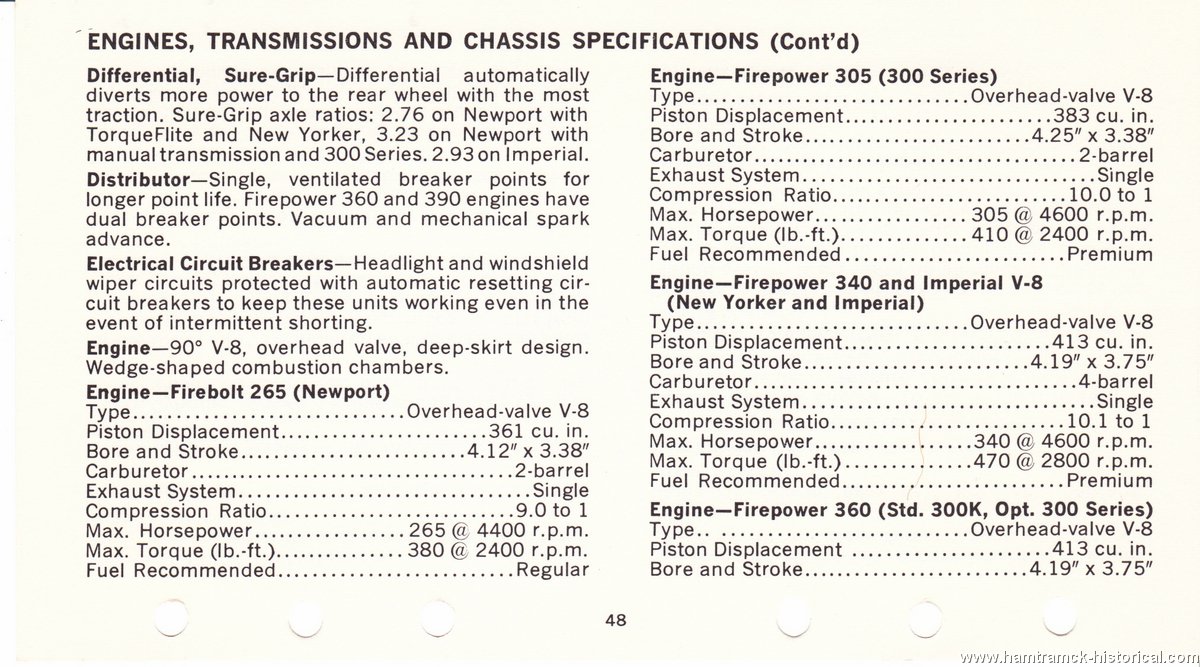

Image: 64_Chry_Impl_Engine_trans_Specs_0018

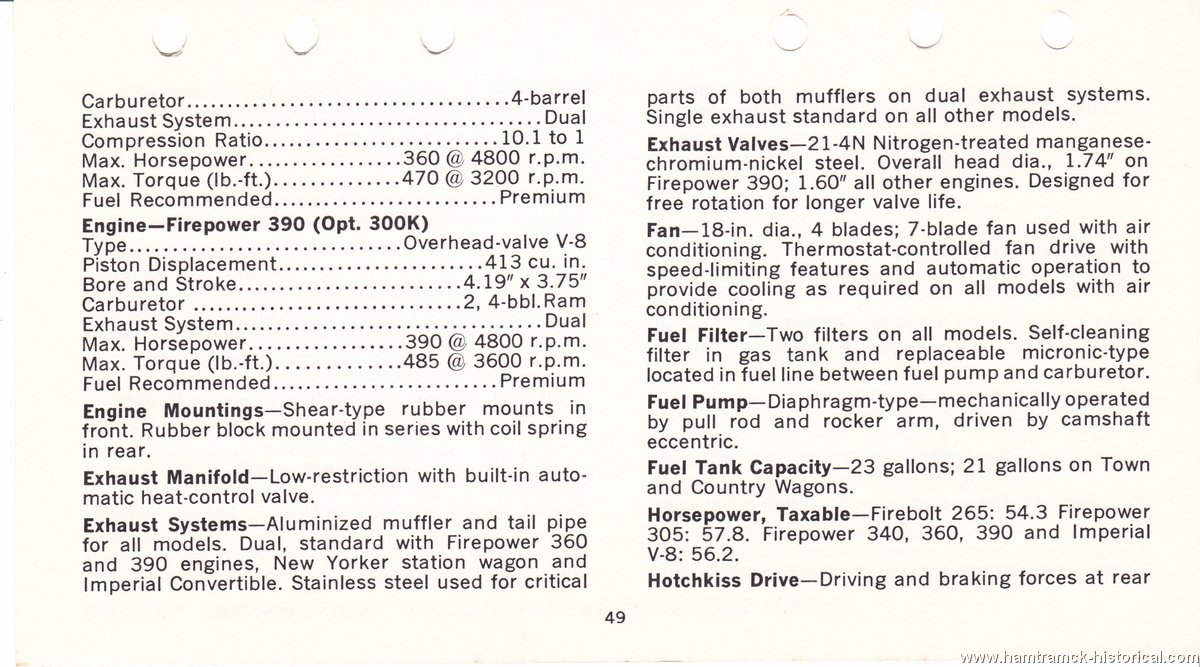

Chrysler-Imperial/ Engines, Transmissions and Chassis Specifications (D-E)
Image: 64_Chry_Impl_Engine_trans_Specs_0019

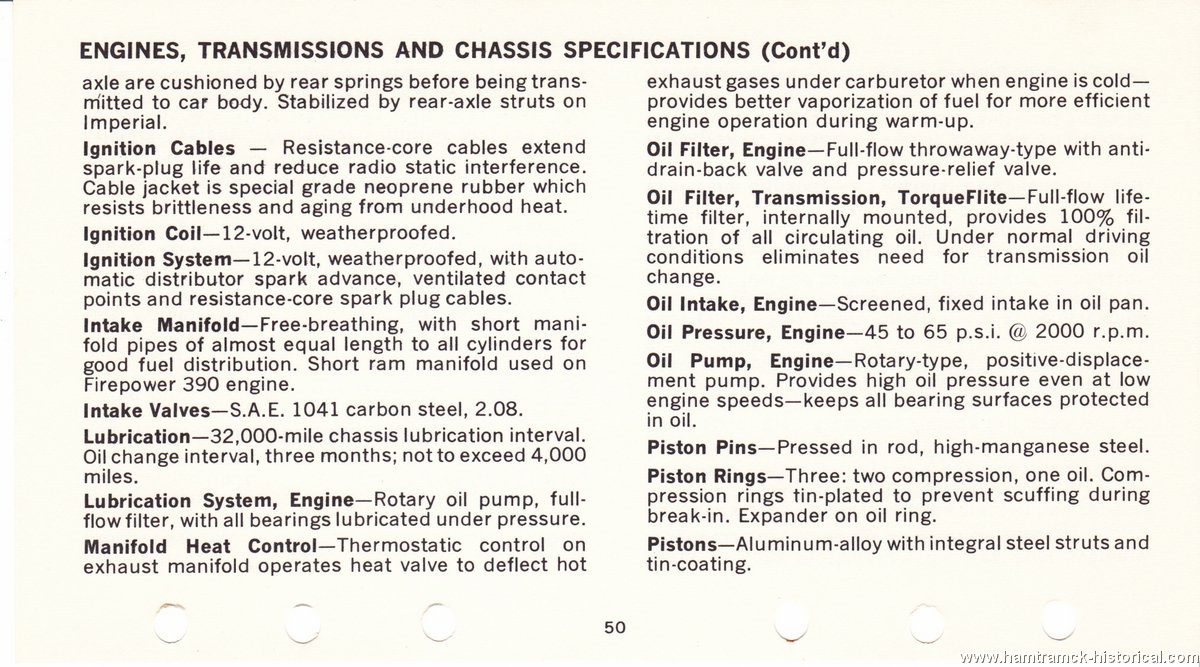

Chrysler-Imperial/ Engines, Transmissions and Chassis Specifications (E-H)
Image: 64_Chry_Impl_Engine_trans_Specs_0020
Chrysler-Imperial/ Engines, Transmissions and Chassis Specifications (I-P)

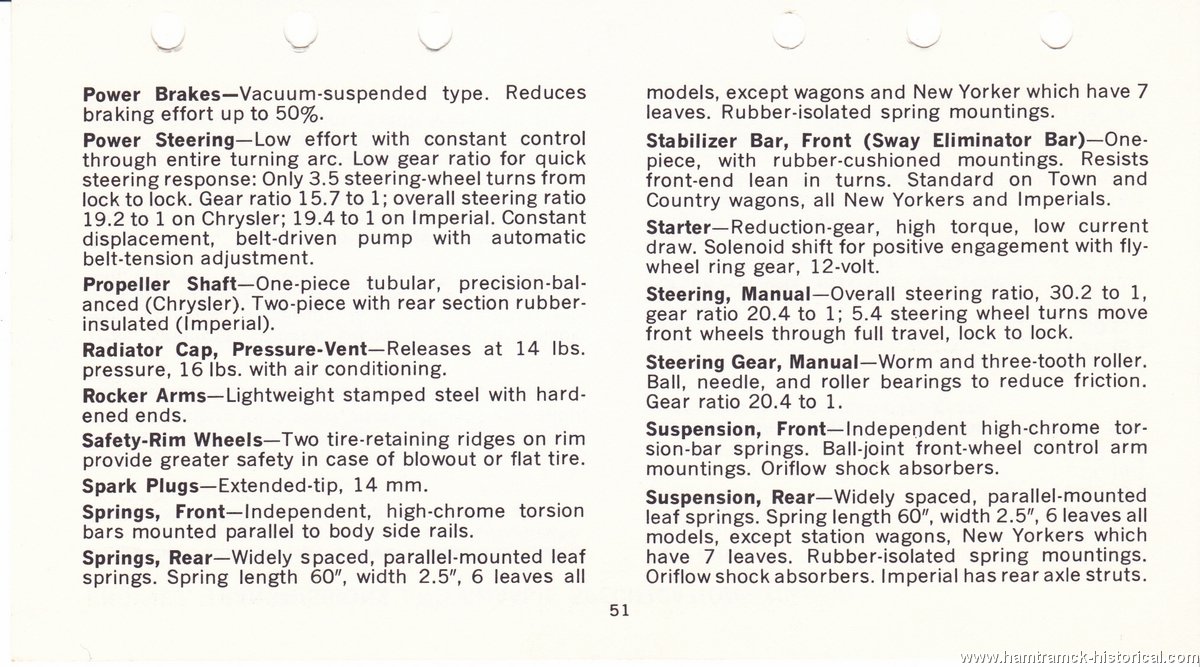

Image: 64_Chry_Impl_Engine_trans_Specs_0021

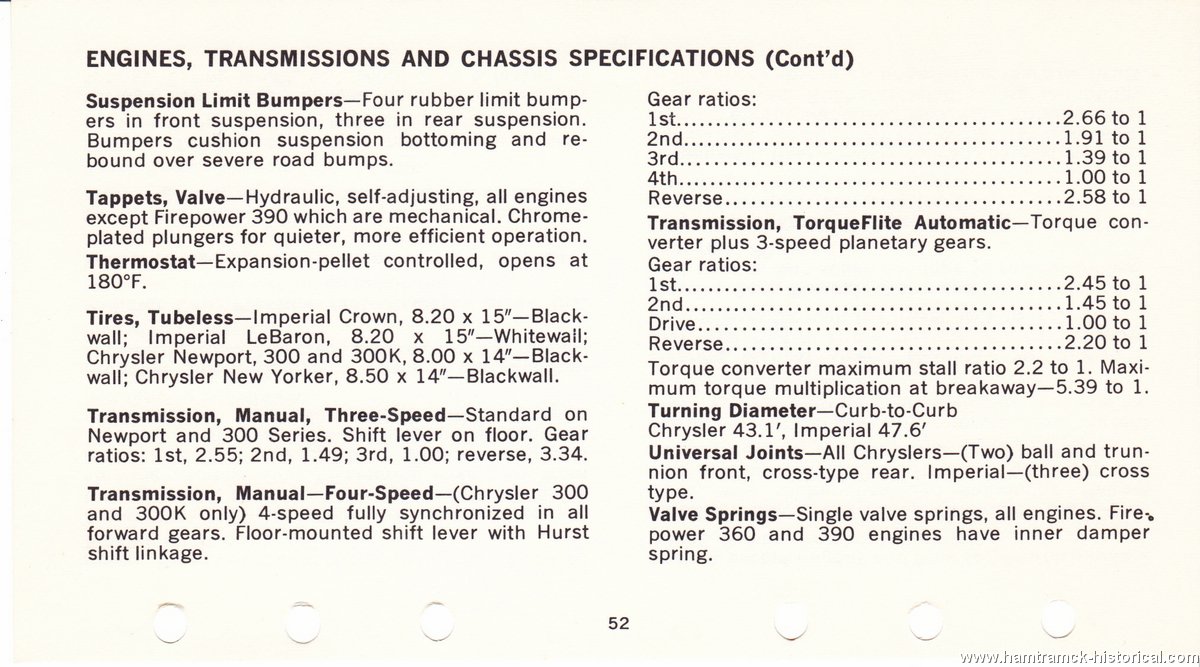

Chrysler-Imperial/ Engines, Transmissions and Chassis Specifications (P-S)
Image: 64_Chry_Impl_Engine_trans_Specs_0022
Chrysler-Imperial/ Engines, Transmissions and Chassis Specifications (S-V)
