N88 Speed Control Package Installation Instructions

1975 Dart & Duster

CLICK ON IMAGES TO ENLARGE

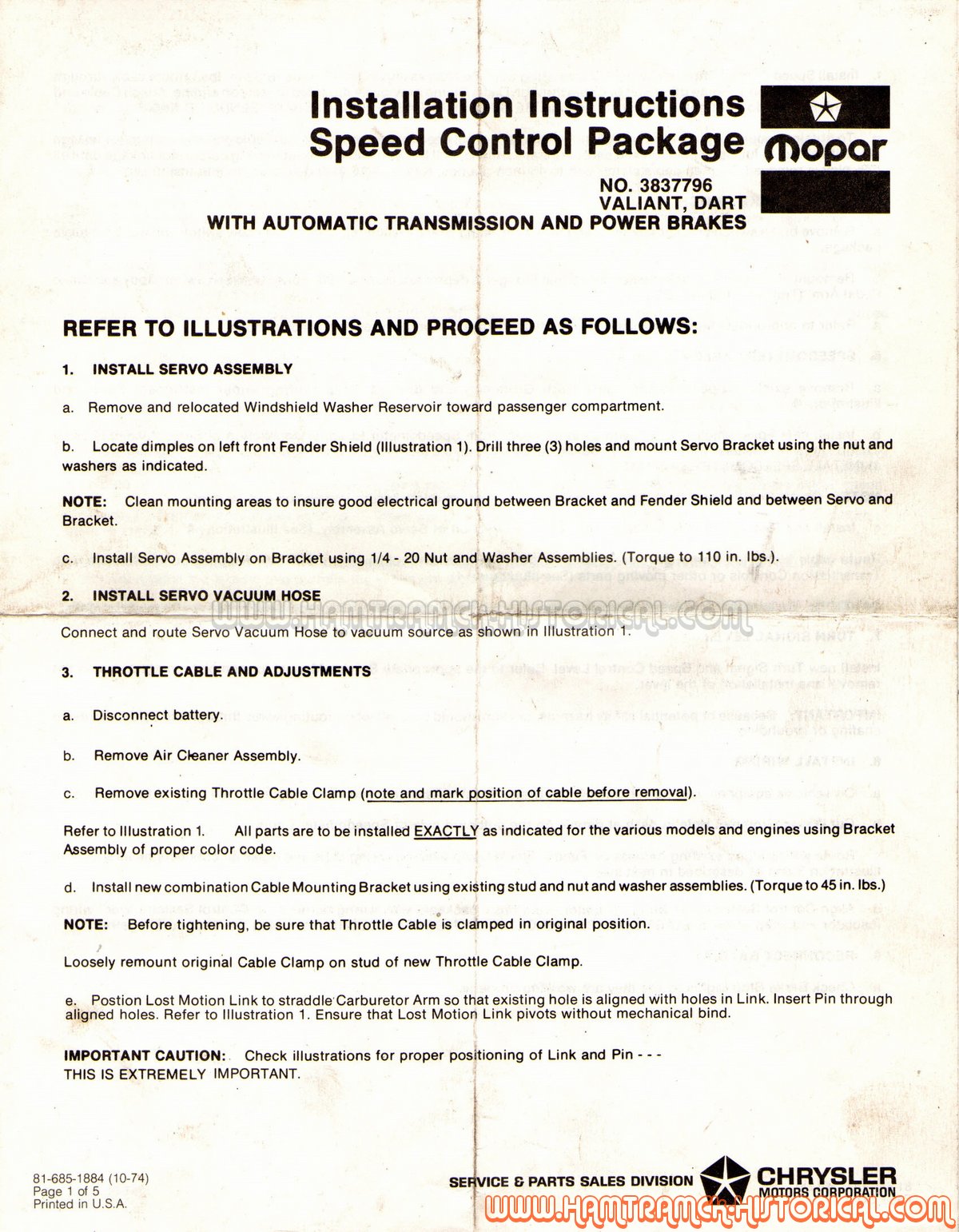

Image: N88 1975 Dart & Valiant Speed control instructions p (1)
Install Servo Assembly, Install Servo Vacuum Hose, Throttle Cable And Adjustments

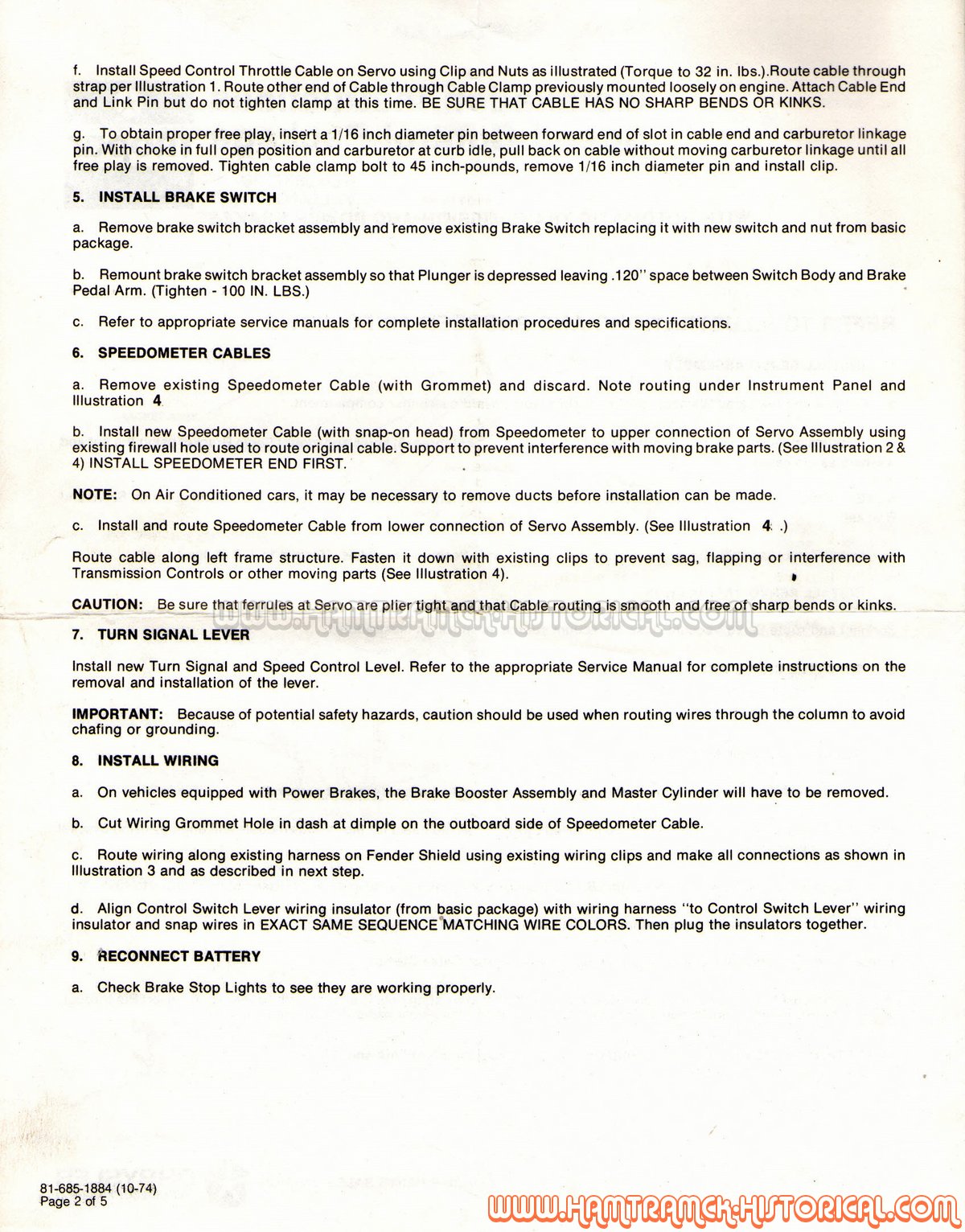

Image: N88 1975 Dart & Valiant Speed control instructions p (2)
Install Brake Switch, Speedometer Cables, Turn Signal Level, Install Wiring, Reconnect Battery

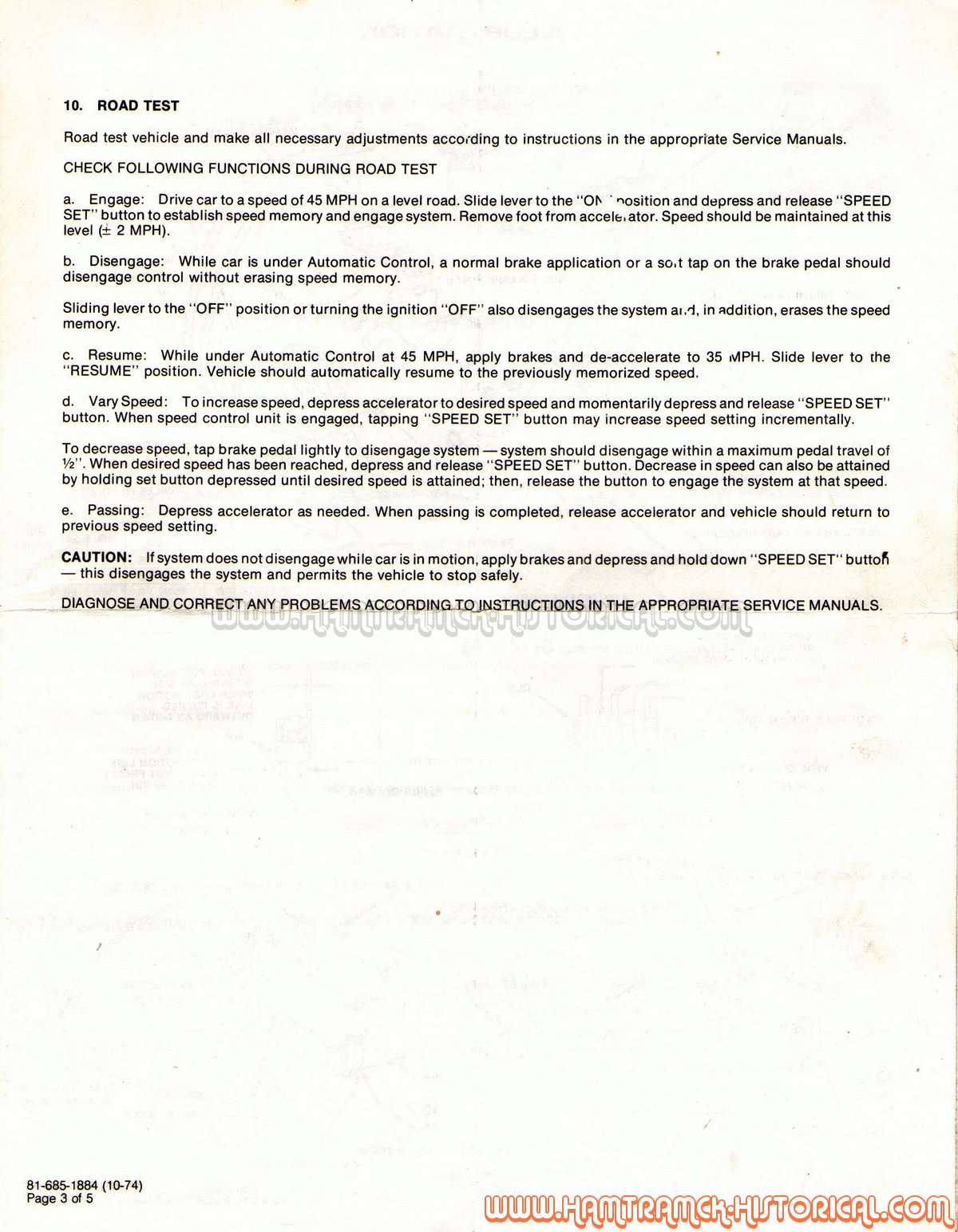

Image: N88 1975 Dart & Valiant Speed control instructions p (3)
Road Test

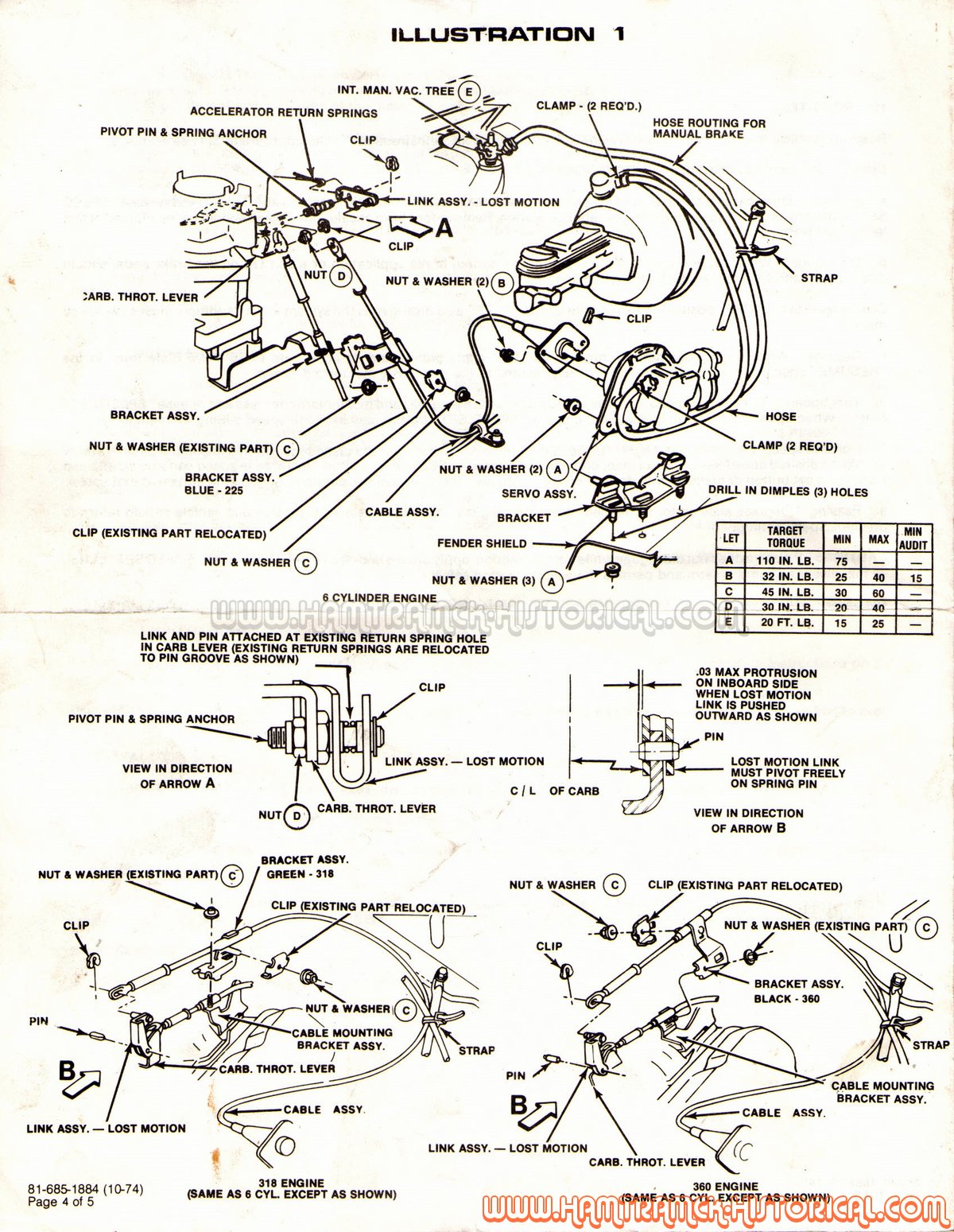

Image: N88 1975 Dart & Valiant Speed control instructions p (4)
Illustration 1

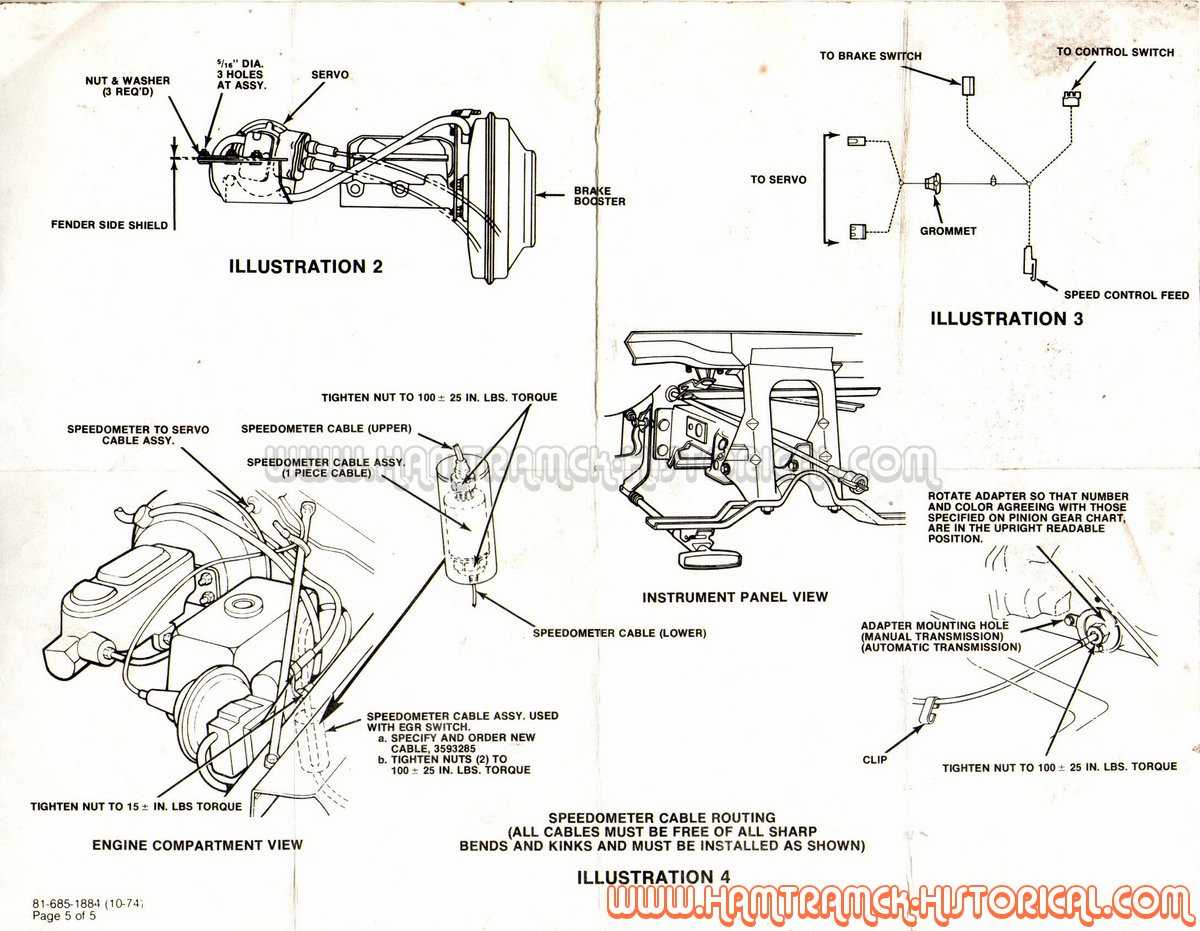

Image: N88 1975 Dart & Valiant Speed control instructions p (5)
Illustrations 2, 3, 4
