1969 Plymouth Dealership Data Book
Index & Specifications

If you were able to order your 1969 Plymouth new at your local dealership back when our cars were new, your ever-friendly salesman likely would have sat down with you and paged through one of these books with you. They typically show some of the major options and option groups available for each model line along with some photos. They were not meant to be a "complete" list of options, and since they were printed just as the new model year began these books do contain some errors at times.
Like just about everything here at HH, this section will be a work in progress and other data books will be added as time goes on.

Special thanks to Richard Blank & Doug Hammer! Richard let Doug borrow this book so he could scan it for us, thanks guys!

BARRACUDA BELVEDERE FURY
VALIANT WAGONS INDEX & SPECIFICATIONS

CLICK ON IMAGES TO ENLARGE

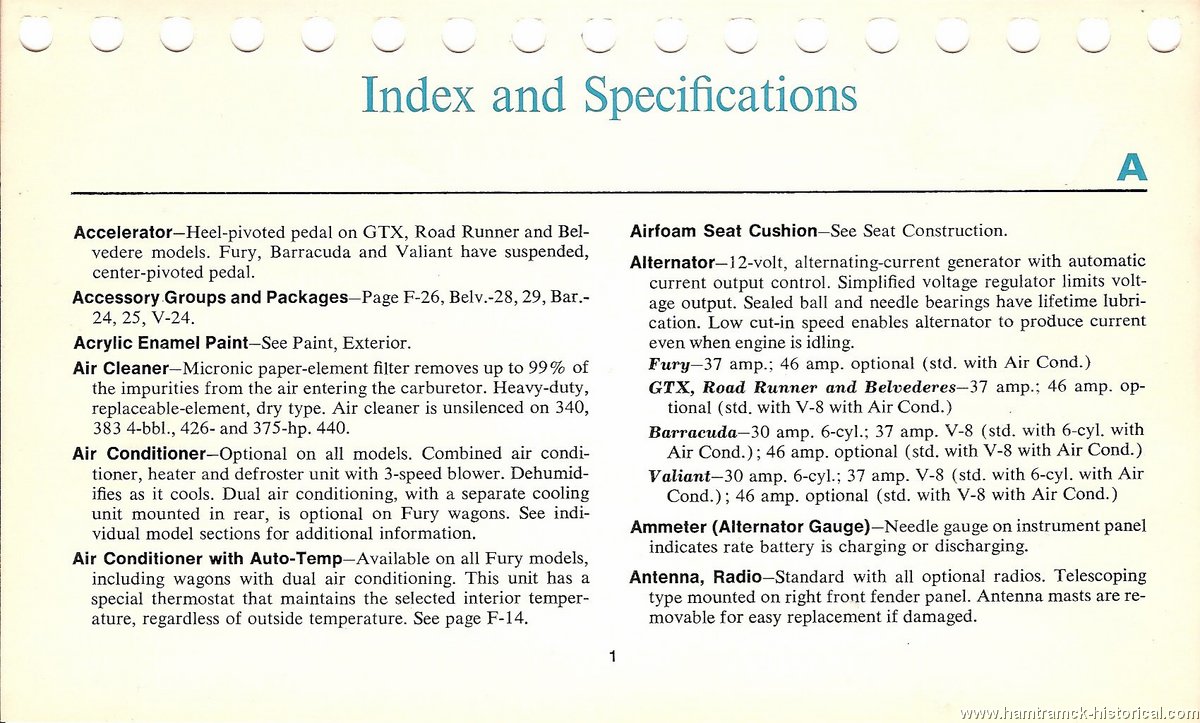

Image: 69_Plymouth_Index_Specs0001
Accelerator - Antenna, Radio

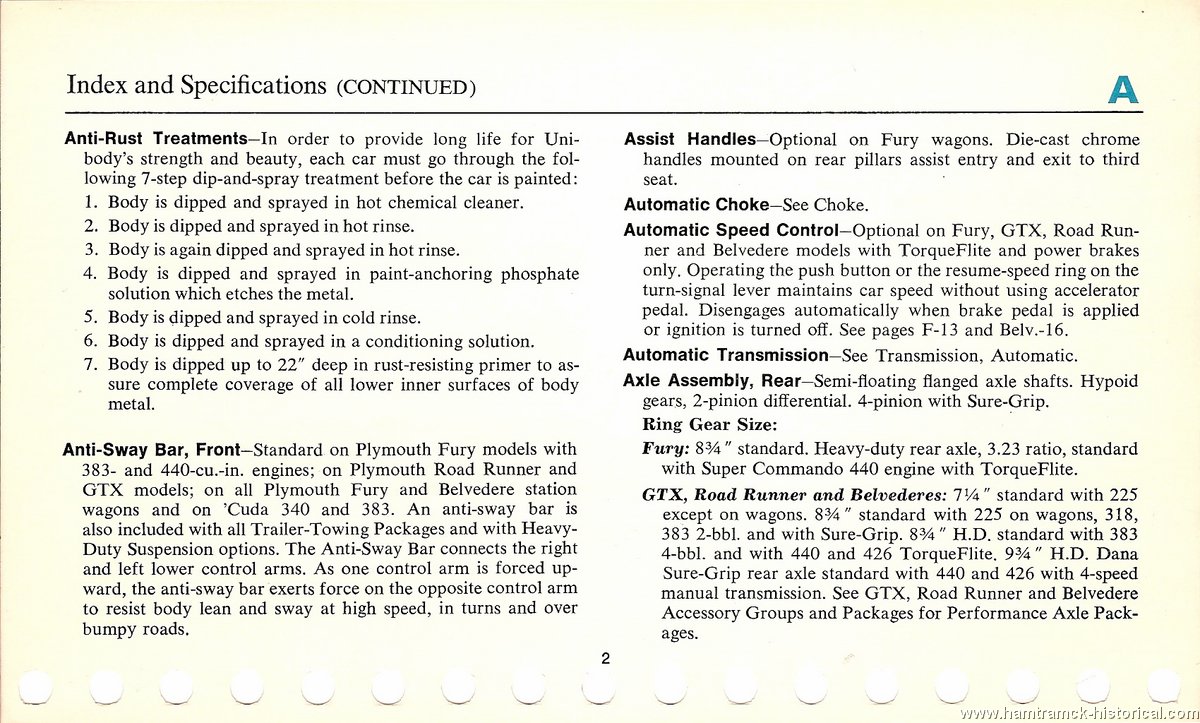

Image: 69_Plymouth_Index_Specs0002
Anti-Rust Treatments - Axle Assembly: GTX, Road Runner and Belvederes

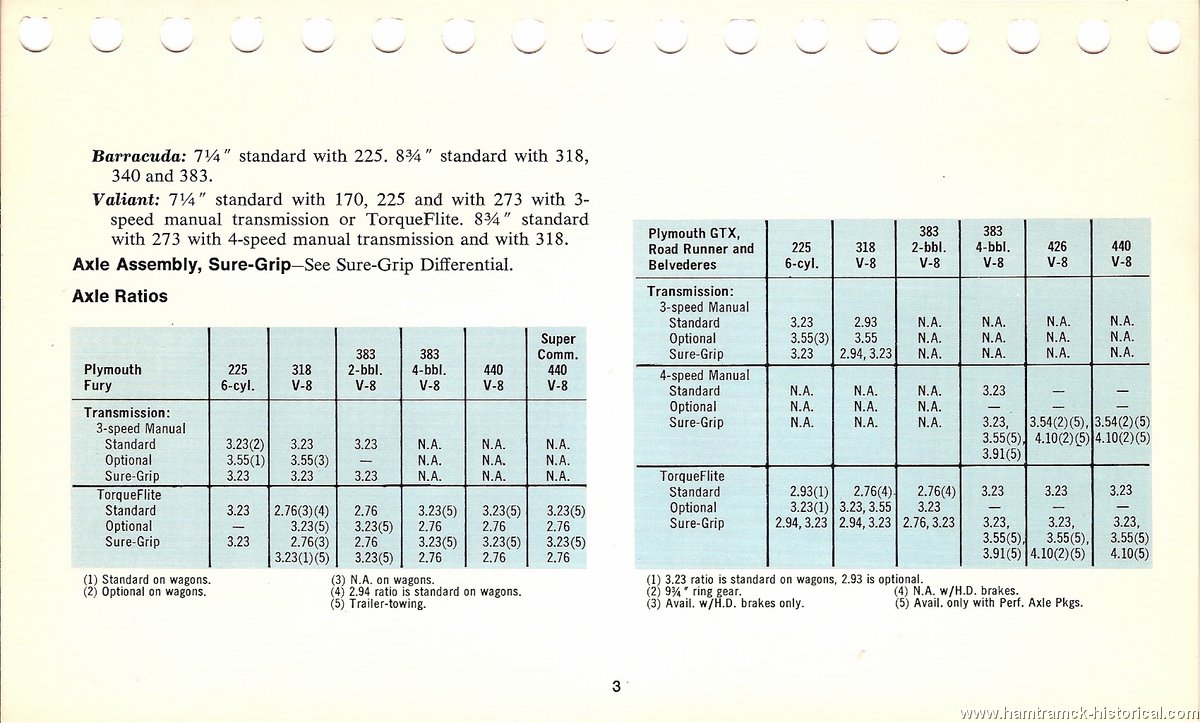

Image: 69_Plymouth_Index_Specs0003
Axle Assembly: Barracuda - Axle Ratios

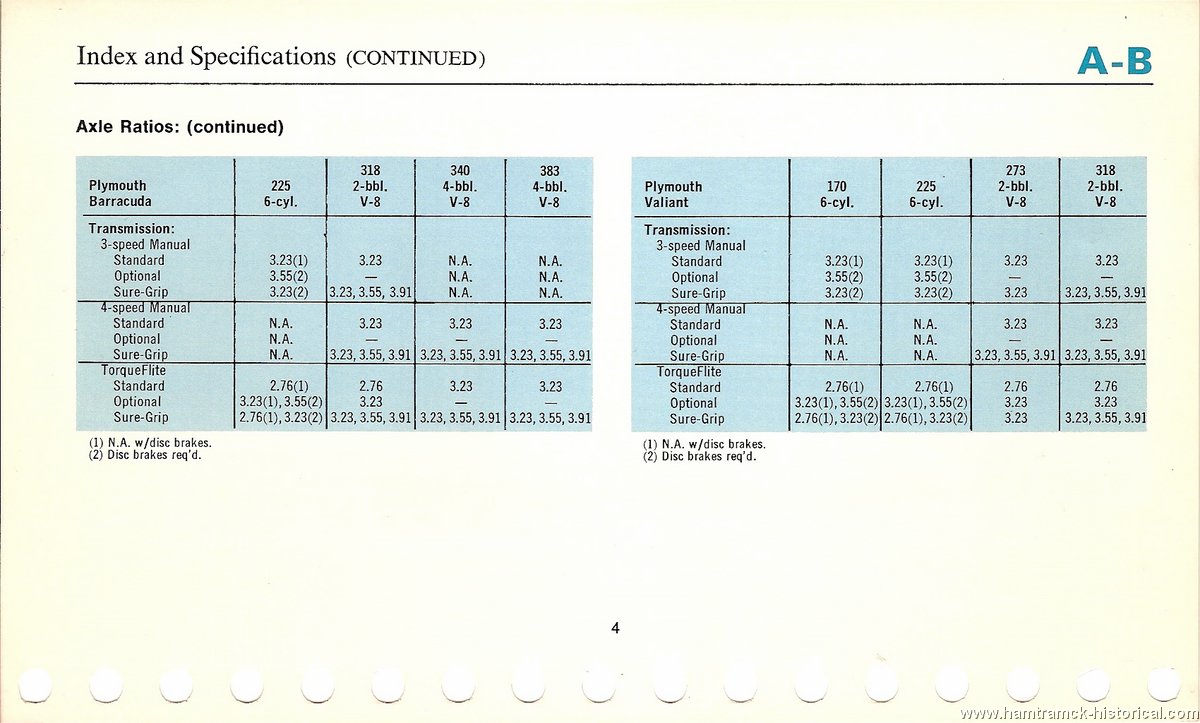

Image: 69_Plymouth_Index_Specs0004
Axle Ratios (continued)

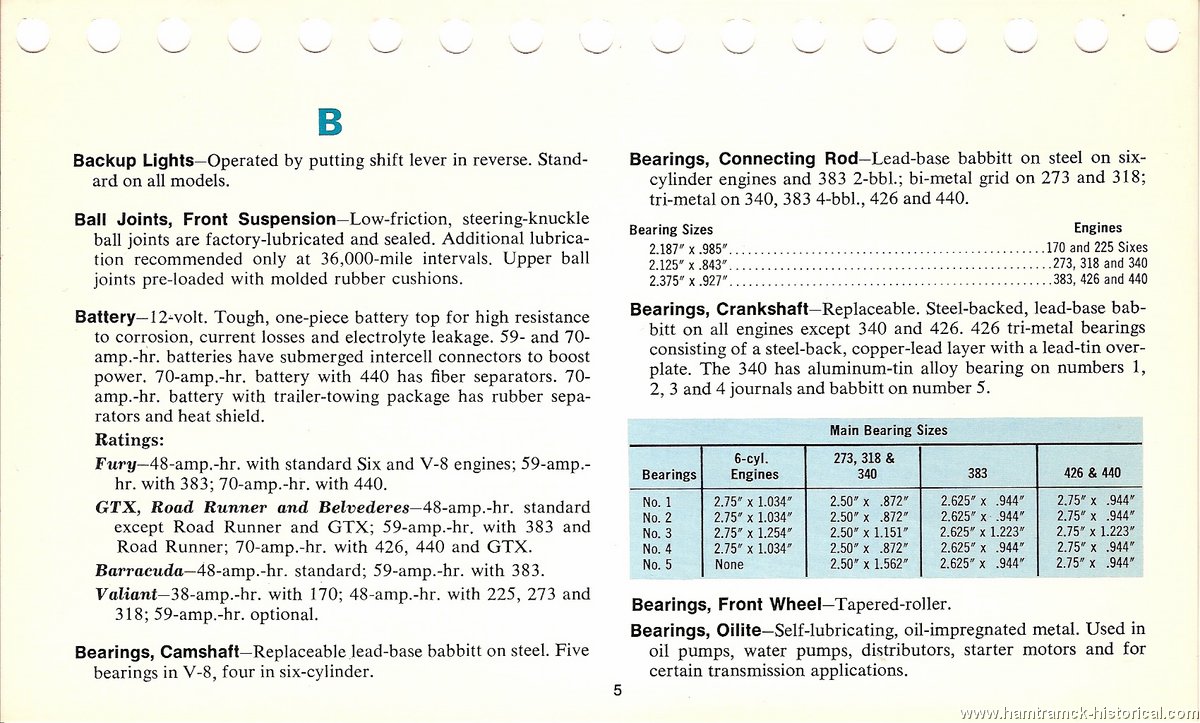

Image: 69_Plymouth_Index_Specs0005
Backup Lights - Bearings, Oilite

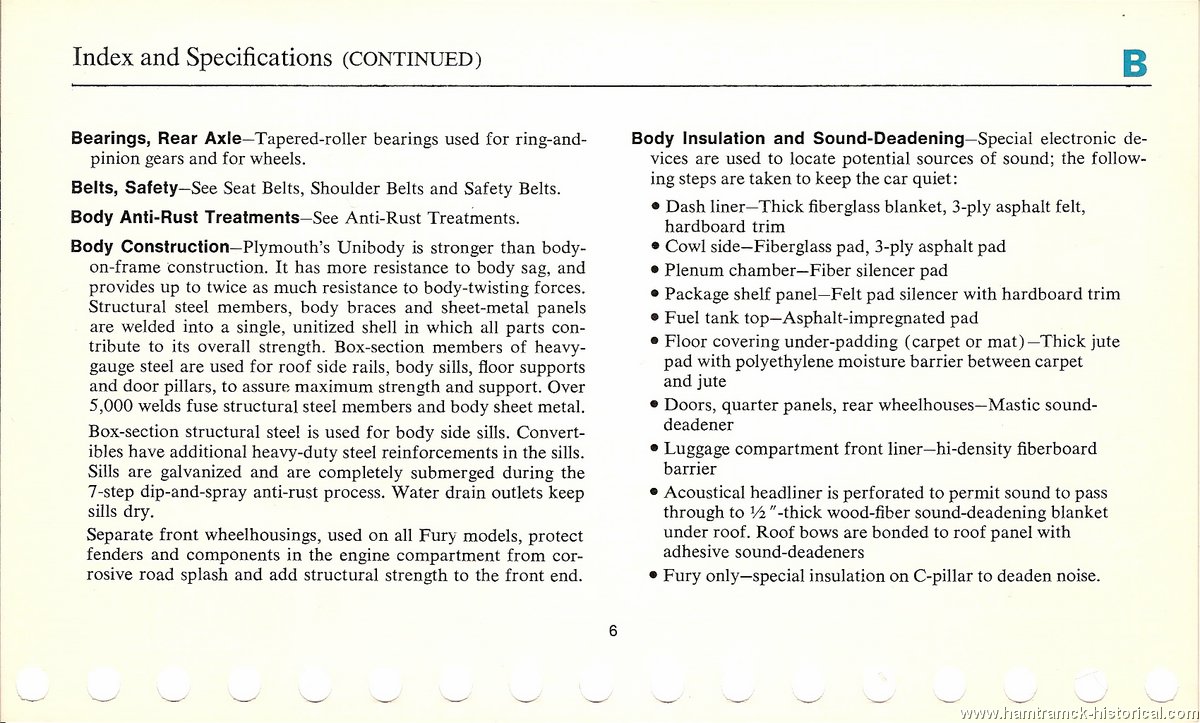

Image: 69_Plymouth_Index_Specs0006
Bearings, Rear Axle - Body Insulation

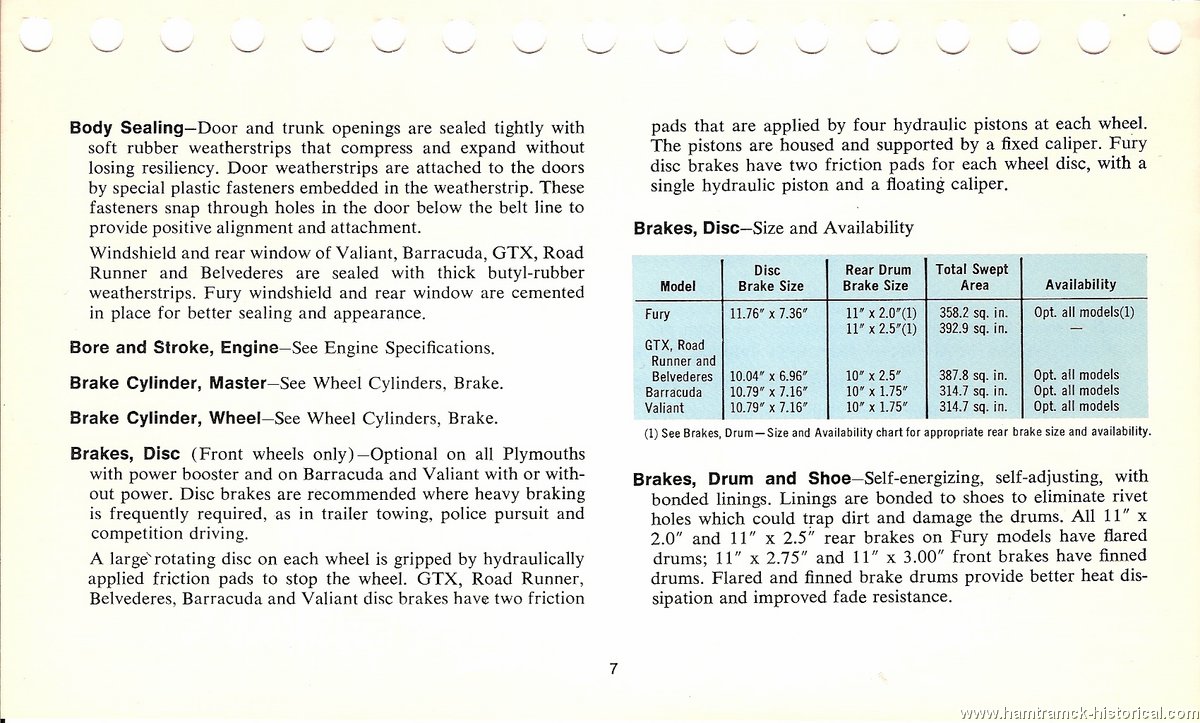

Image: 69_Plymouth_Index_Specs0007
Body Sealin - Breaks, Drum and Shoe

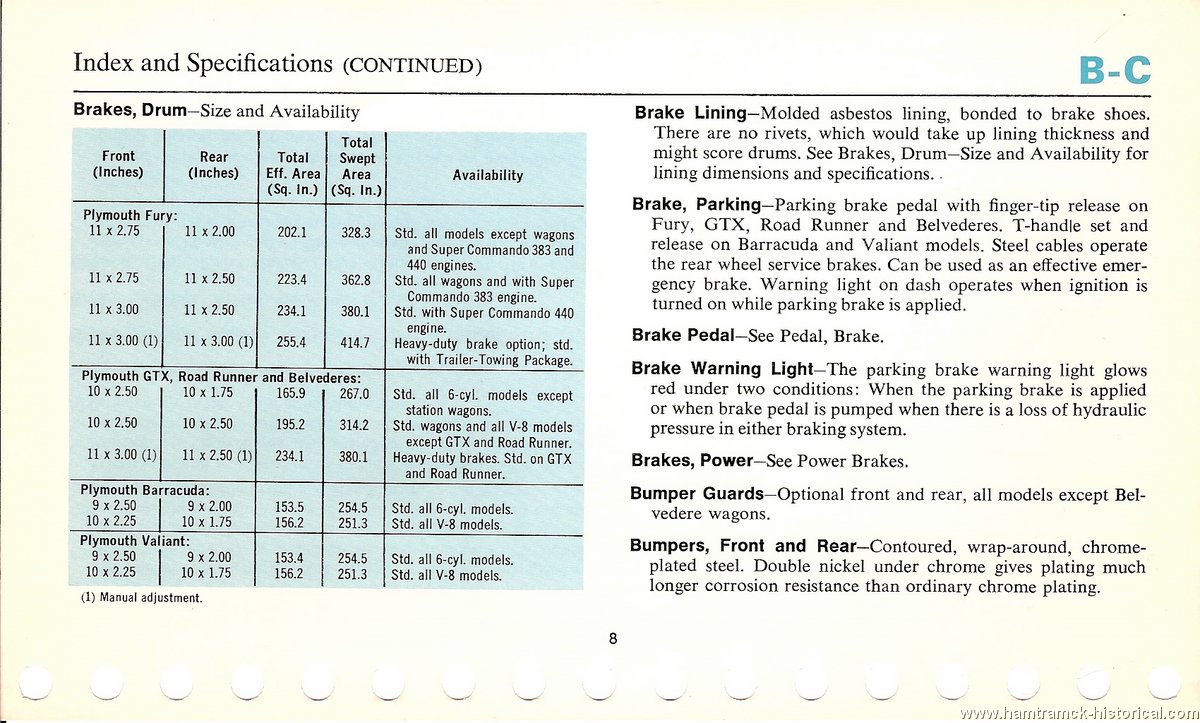

Image: 69_Plymouth_Index_Specs0008
Brakes, Drum - Bumpers, Front and Rear

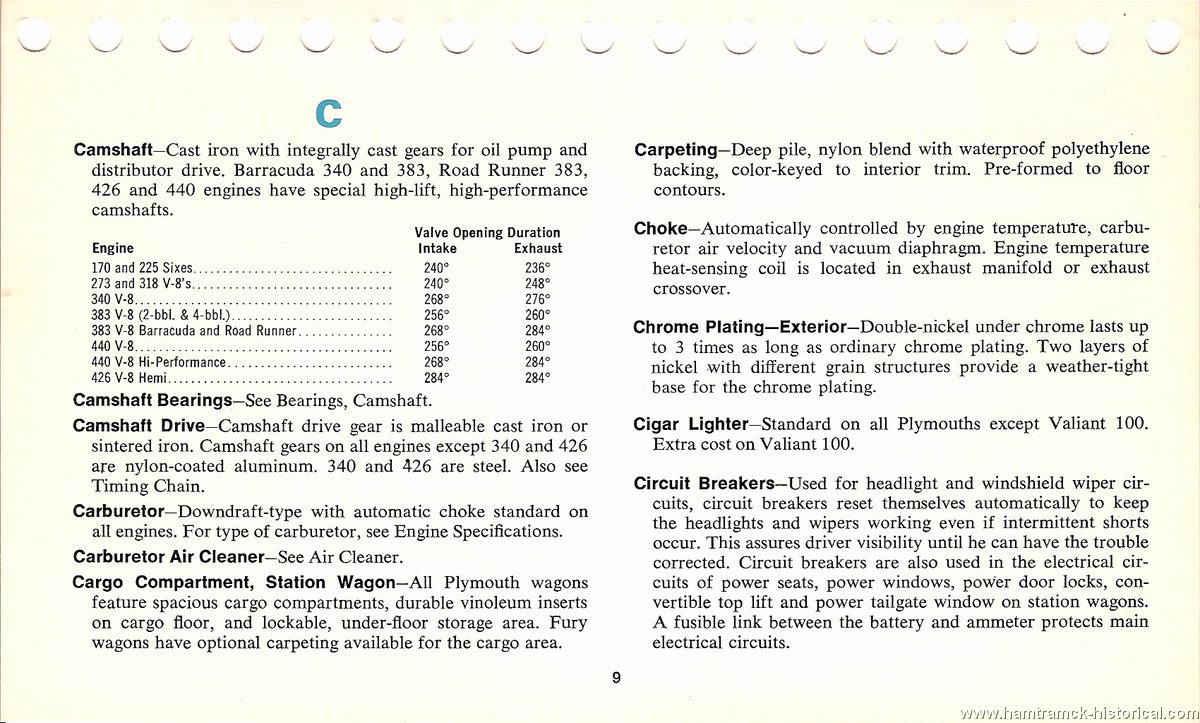

Image: 69_Plymouth_Index_Specs0009
Camshaft - Circuit Breakers

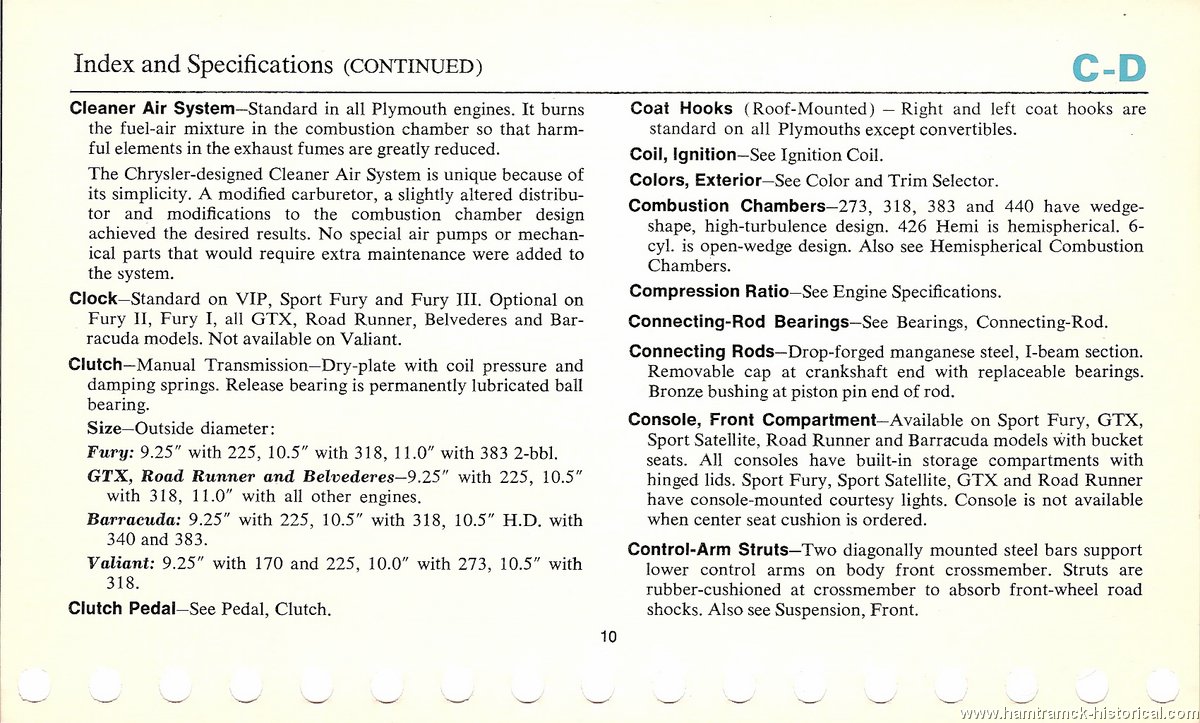

Image: 69_Plymouth_Index_Specs0010
Cleaner Air System - Control-Arm Struts

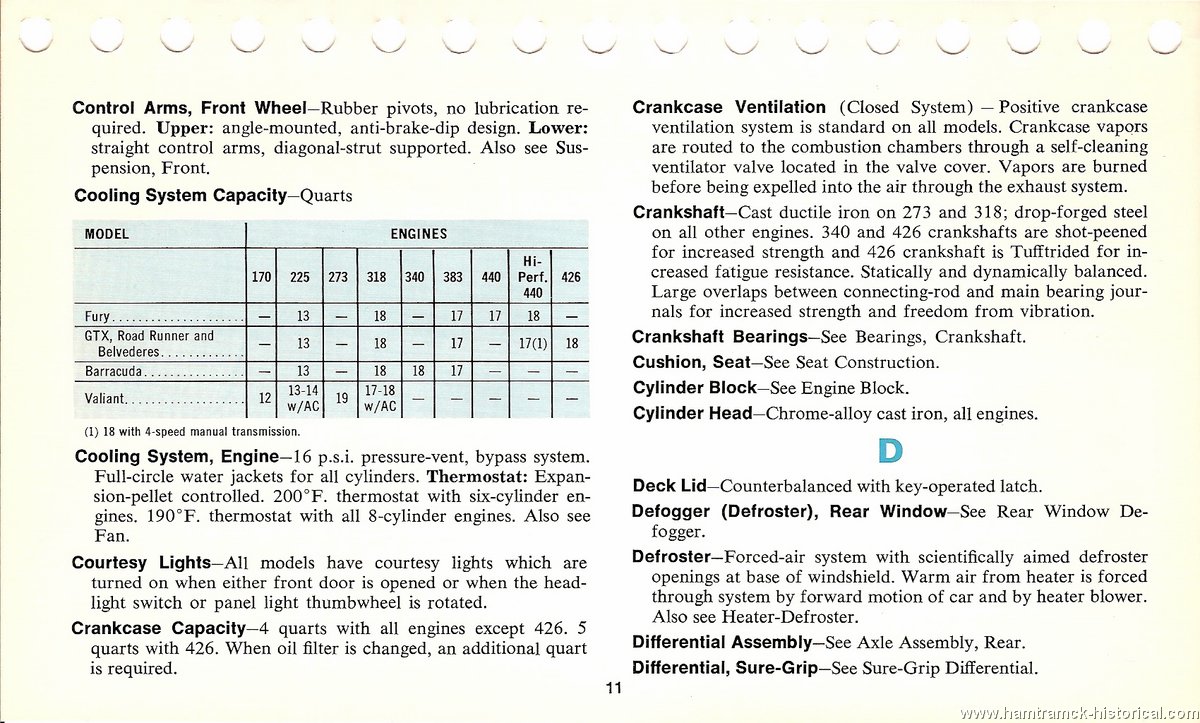

Image: 69_Plymouth_Index_Specs0011
Control Arms, Front Wheel - Differential, Sure-Grip

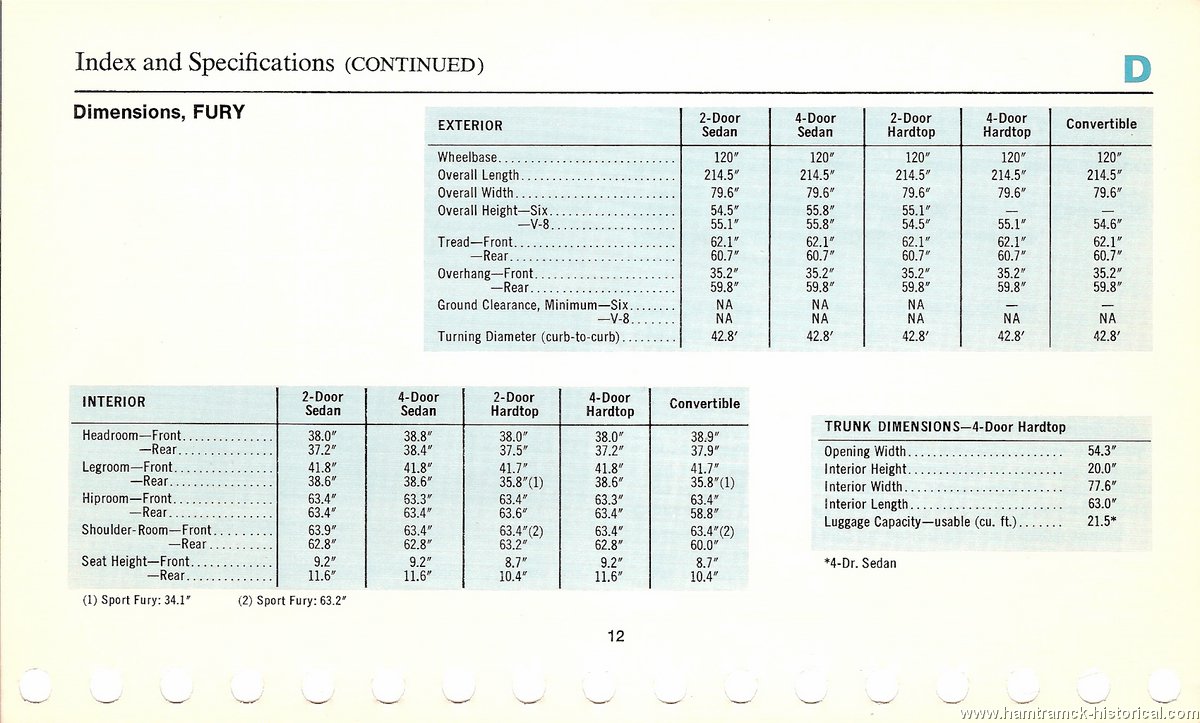

Image: 69_Plymouth_Index_Specs0012
Dimensions, FURY

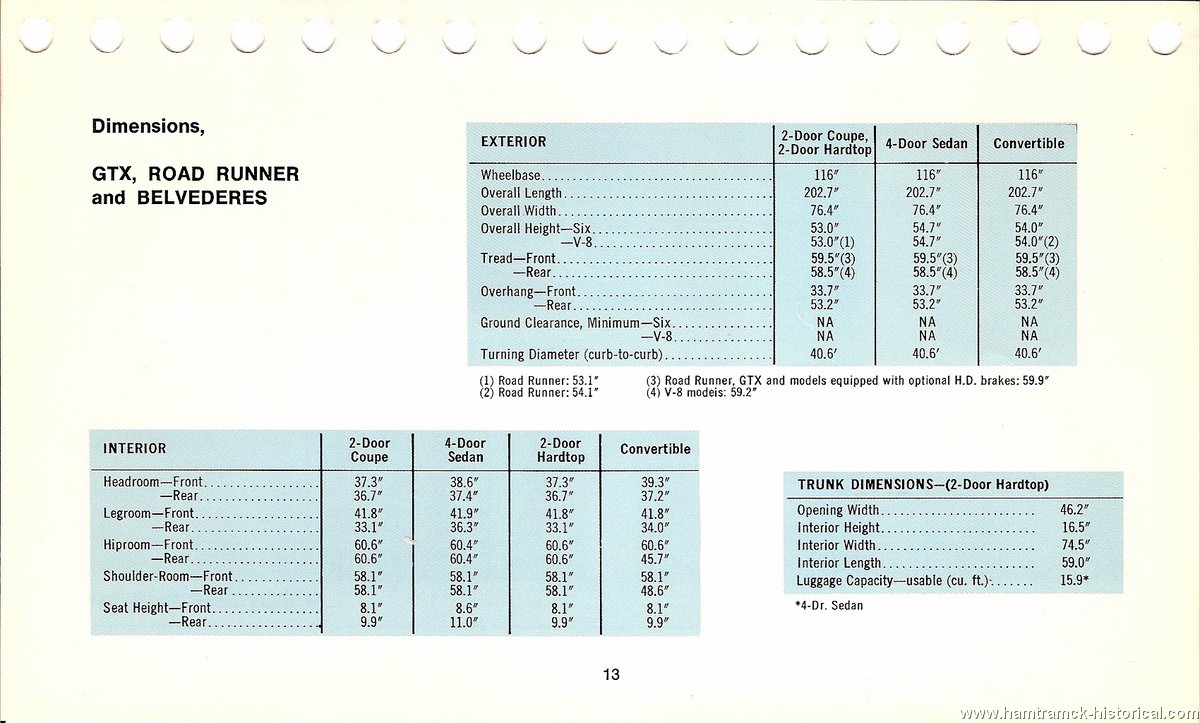

Image: 69_Plymouth_Index_Specs0013
Dimensions, GTX, ROAD RUNNER and BELVEDERS

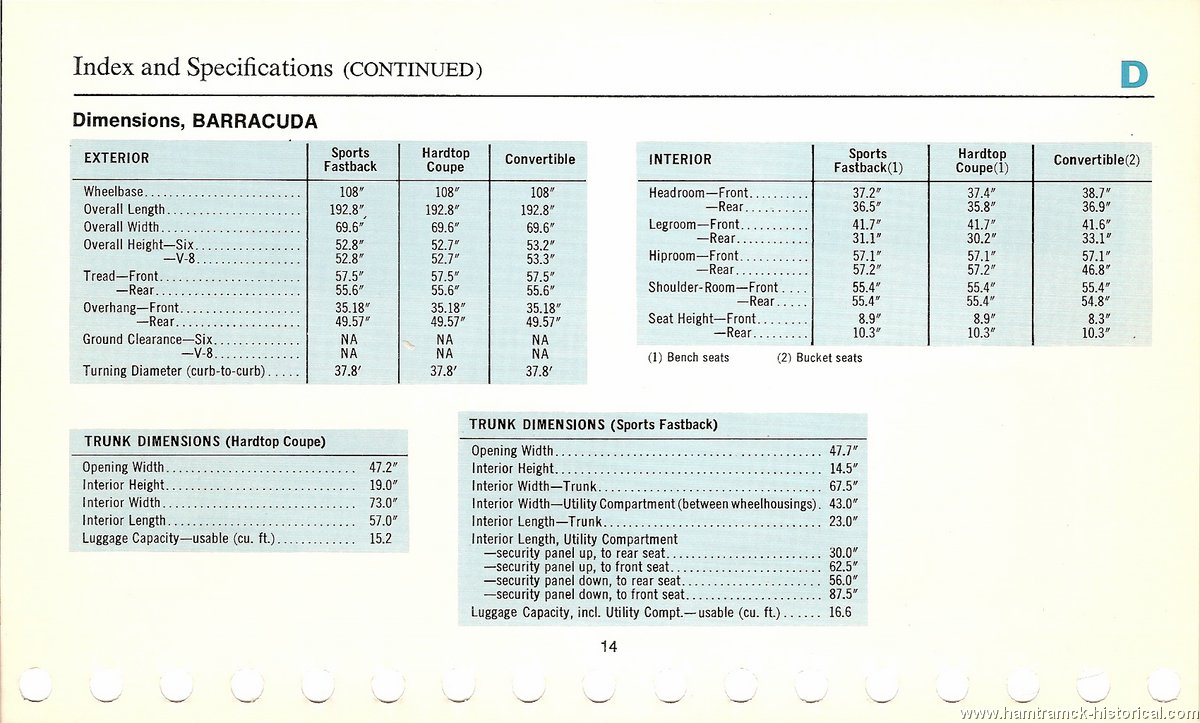

Image: 69_Plymouth_Index_Specs0014
Dimensions, BARRACUDA

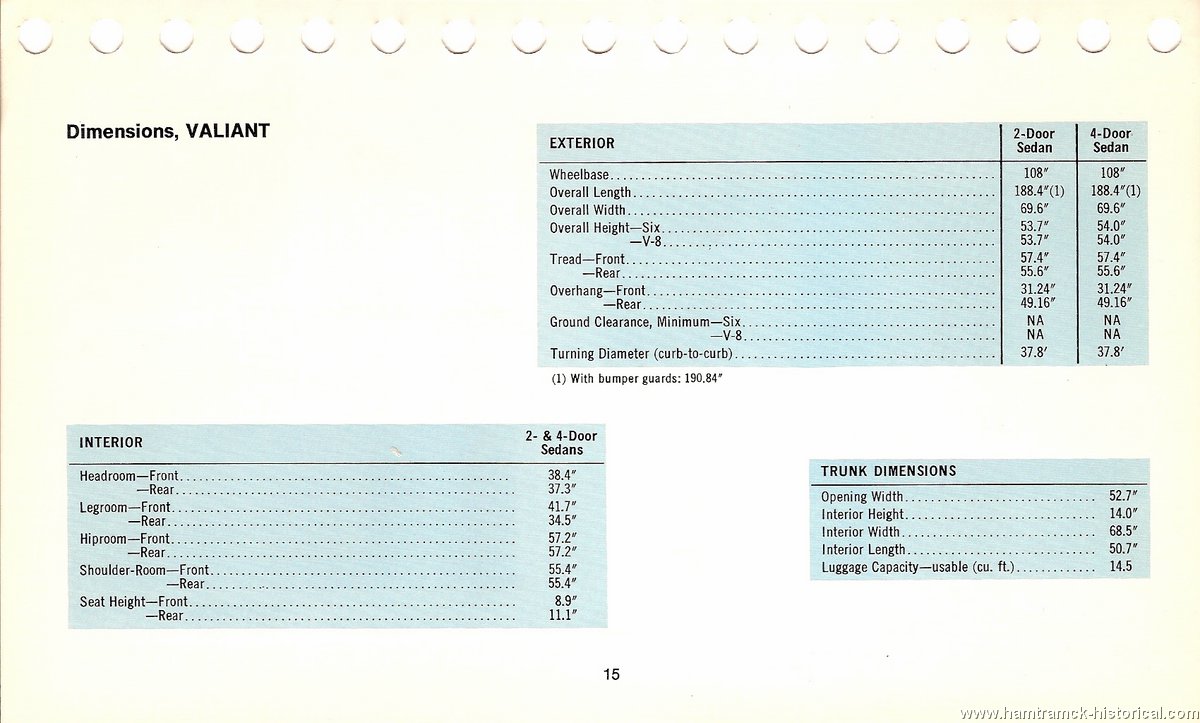

Image: 69_Plymouth_Index_Specs0015
Dimensions, VALIANT

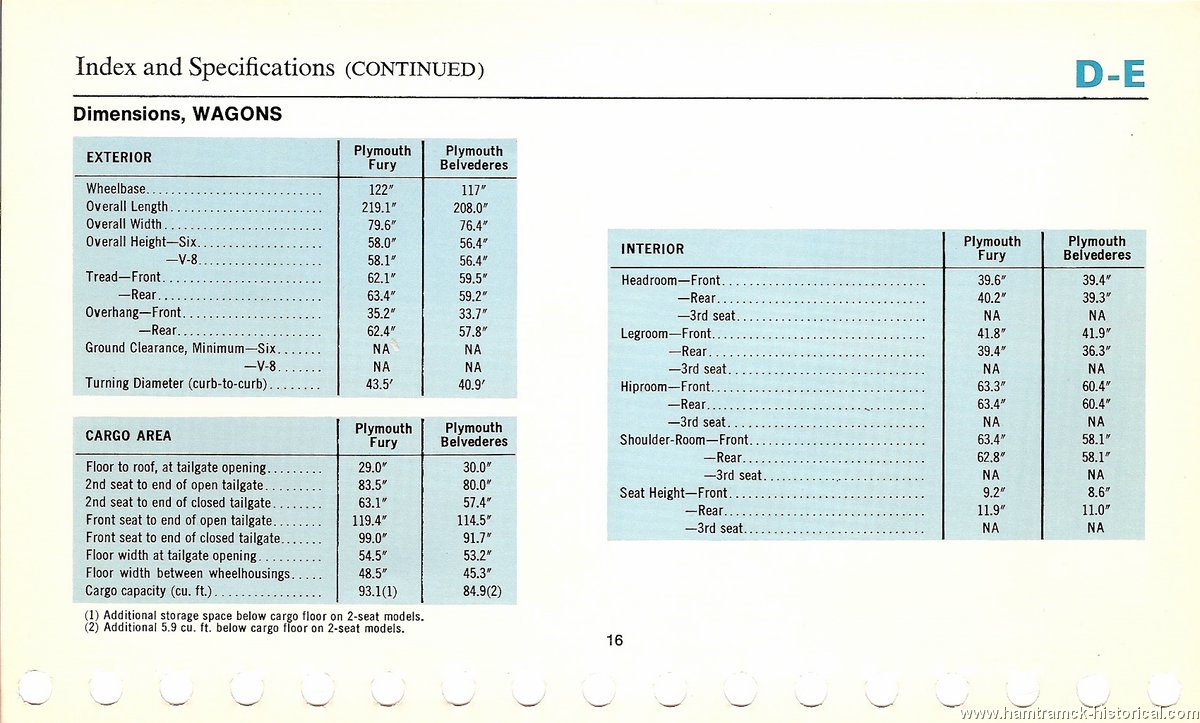

Image: 69_Plymouth_Index_Specs0016
Dimensions, WAGONS

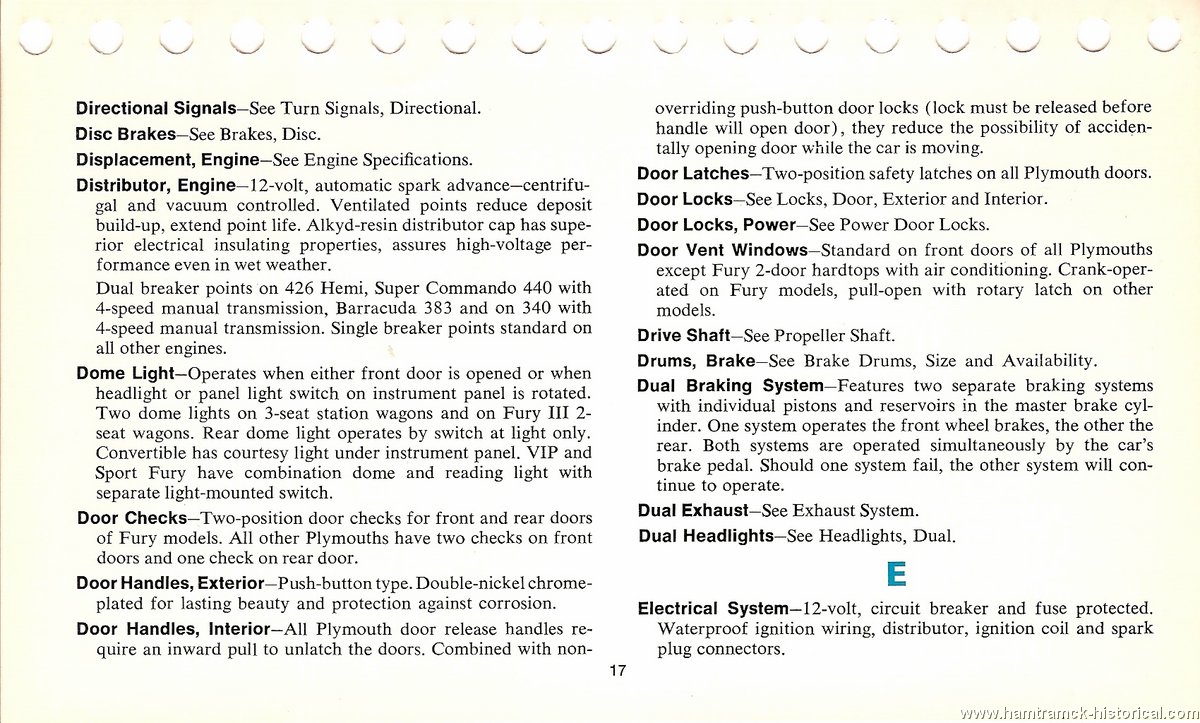

Image: 69_Plymouth_Index_Specs0017
Directional Signals - Electrical System

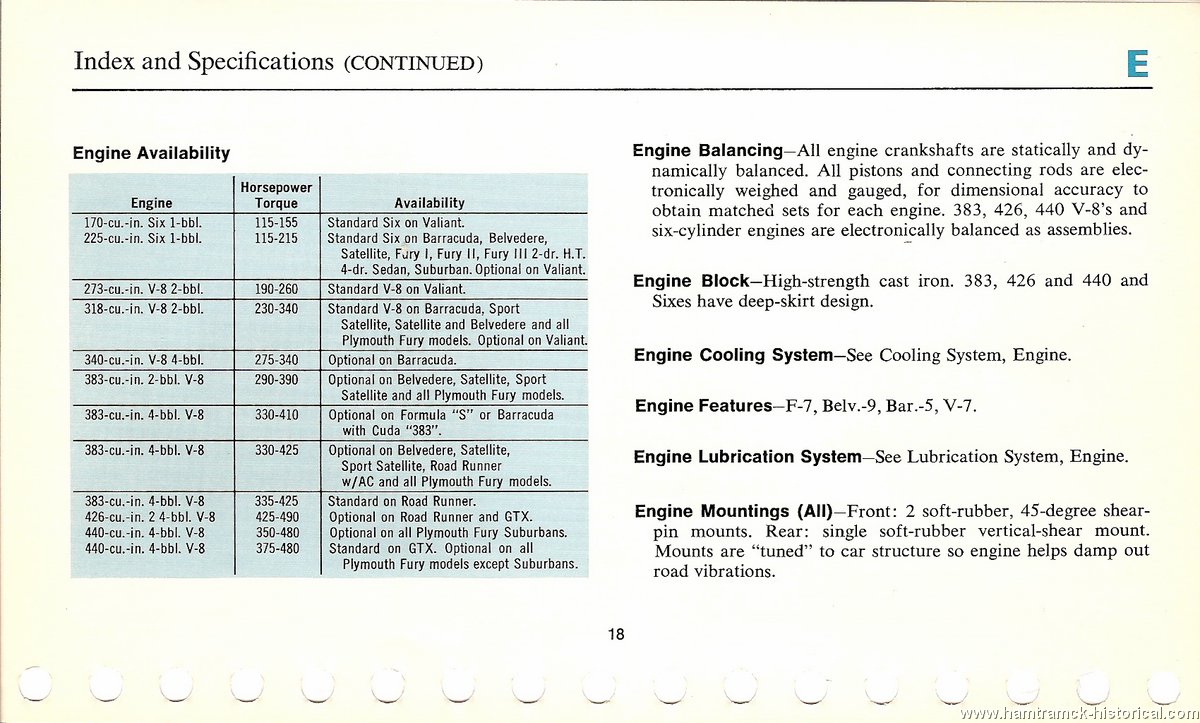

Image: 69_Plymouth_Index_Specs0018
Engine Availability - Engine Mountings (All)

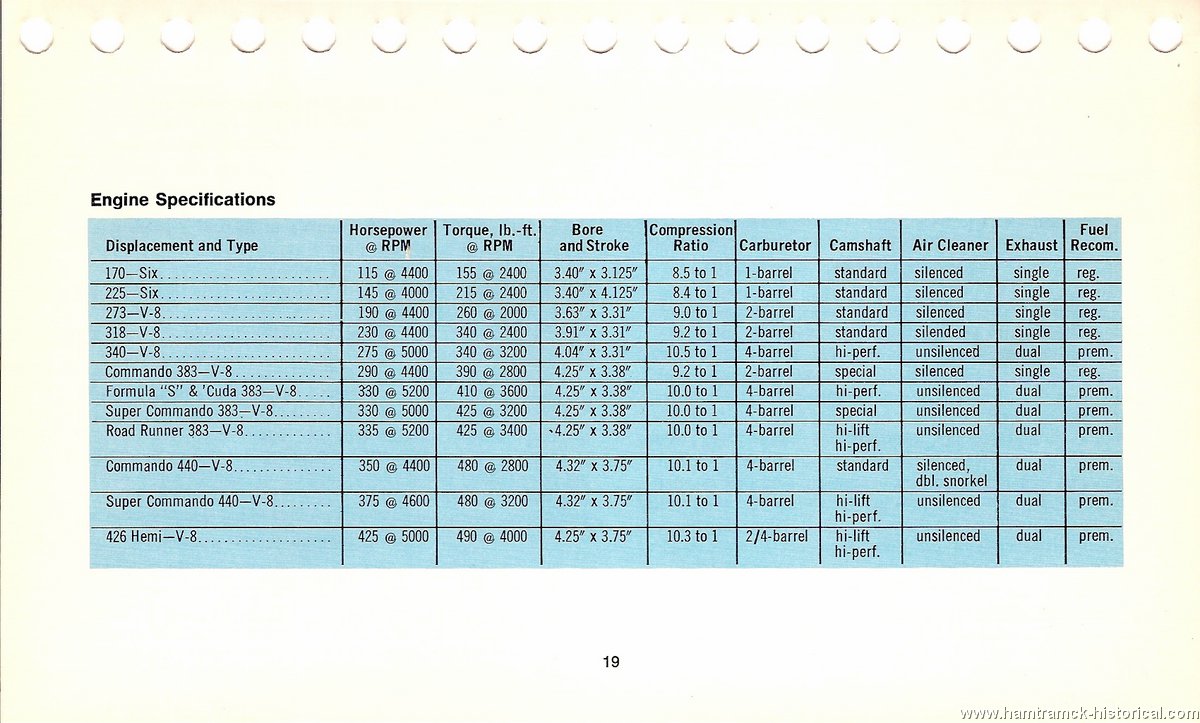

Image: 69_Plymouth_Index_Specs0019
Engine Specifications

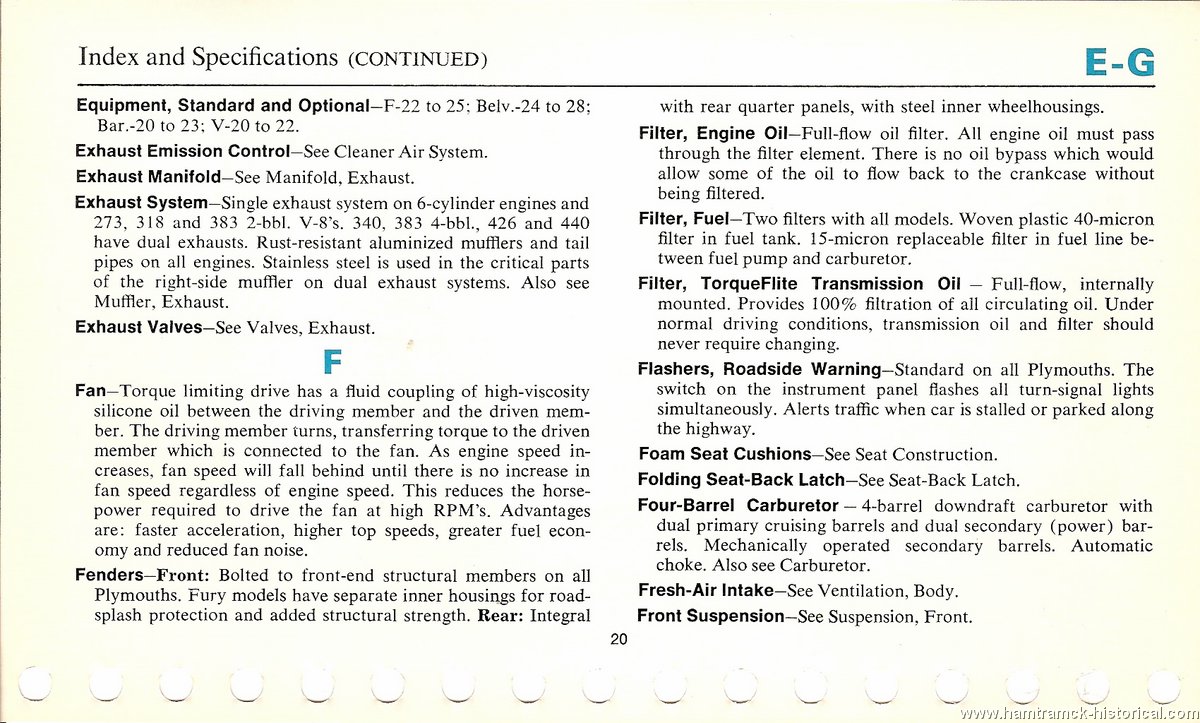

Image: 69_Plymouth_Index_Specs0020
Equipment, Standard and Optional - Front Suspension

Image: 69_Plymouth_Index_Specs0021
Fuel Filter - Glass Area

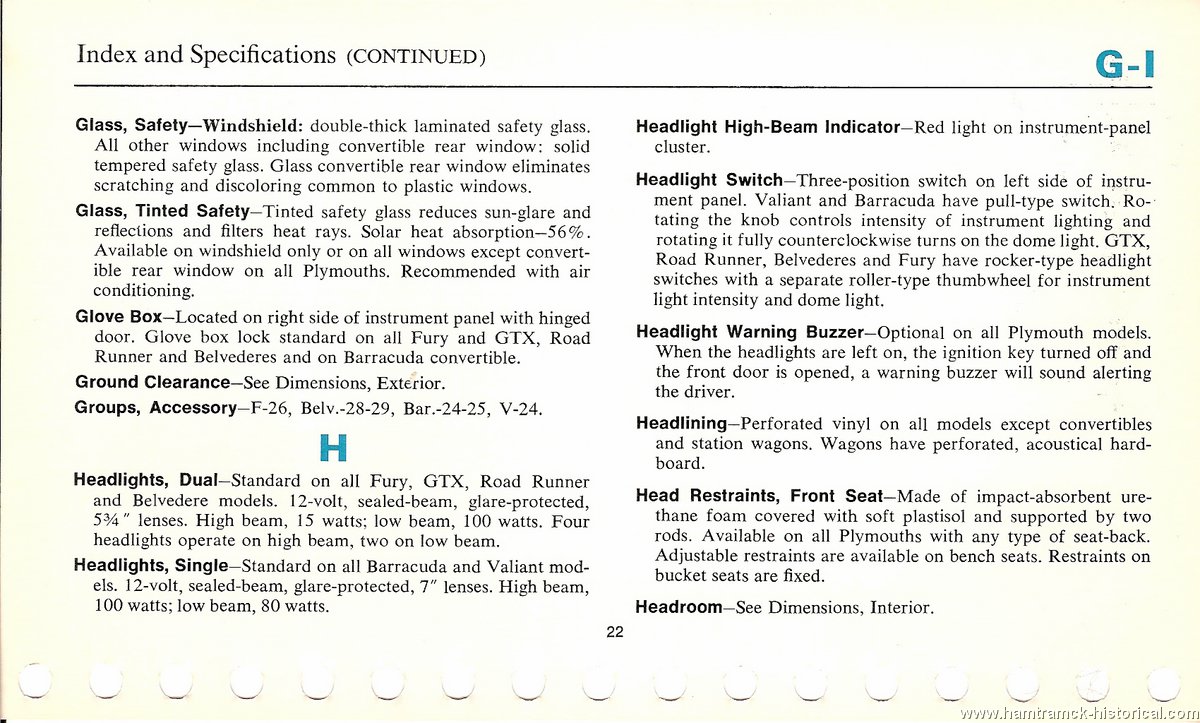

Image: 69_Plymouth_Index_Specs0022
Glass, Safety Windshield - Headroom

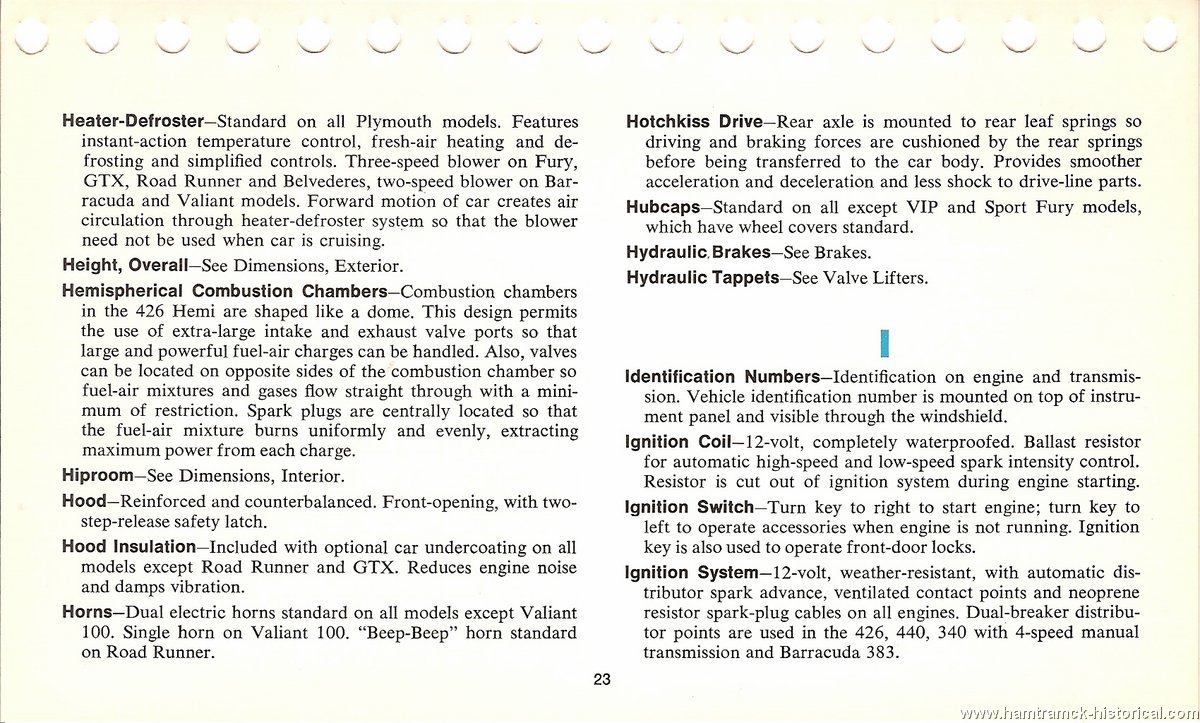

Image: 69_Plymouth_Index_Specs0023
Heater-Defroster - Ignition System

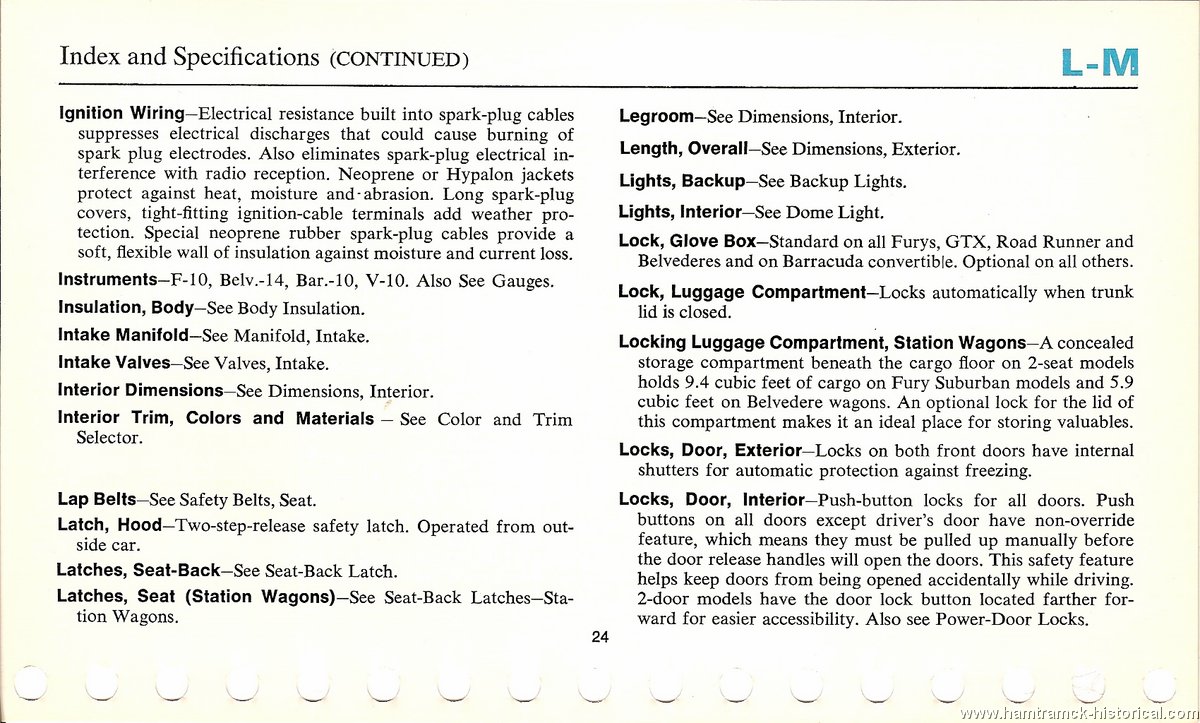

Image: 69_Plymouth_Index_Specs0024
Ignition Wiring - Locks, Door, Interior

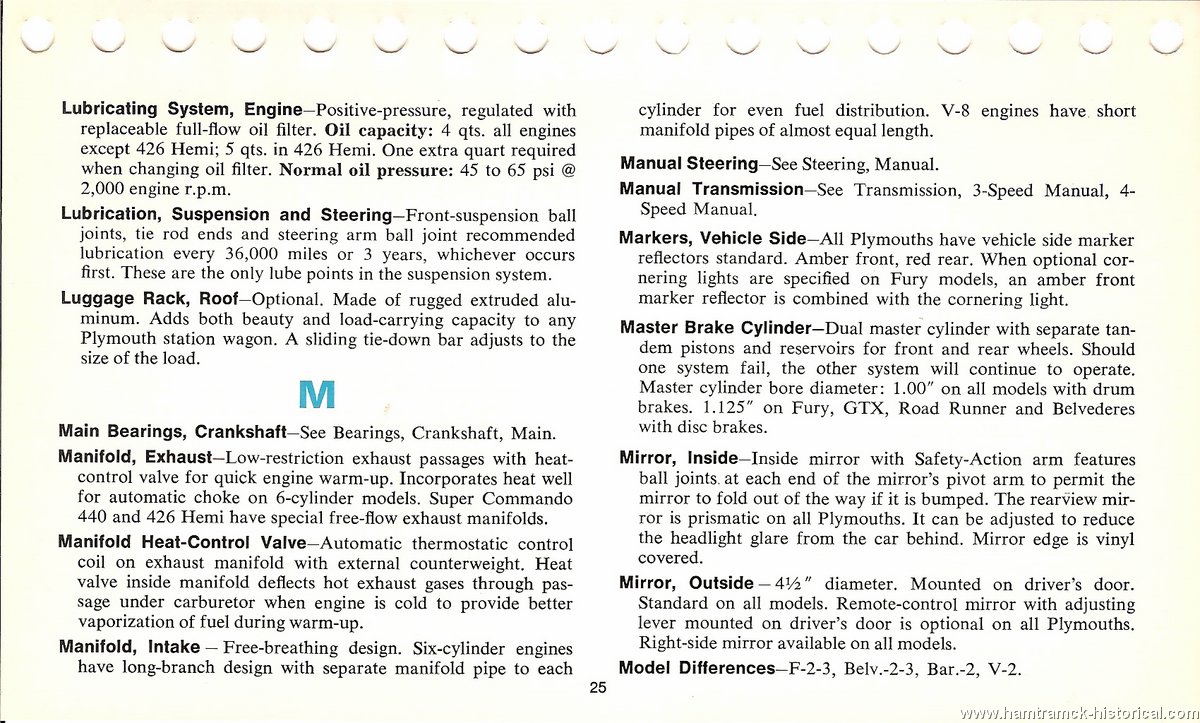

Image: 69_Plymouth_Index_Specs0025
Lubricating System, Engine - Model Differences

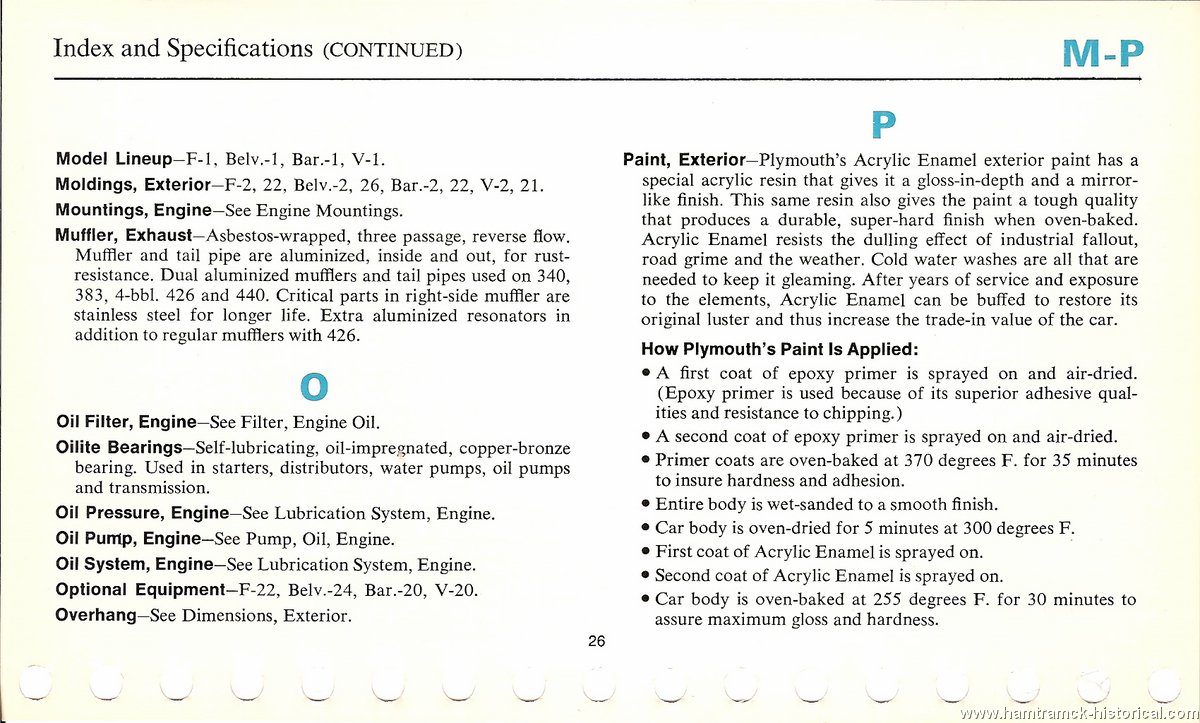

Image: 69_Plymouth_Index_Specs0026
Model Lineup - Paint Exterior

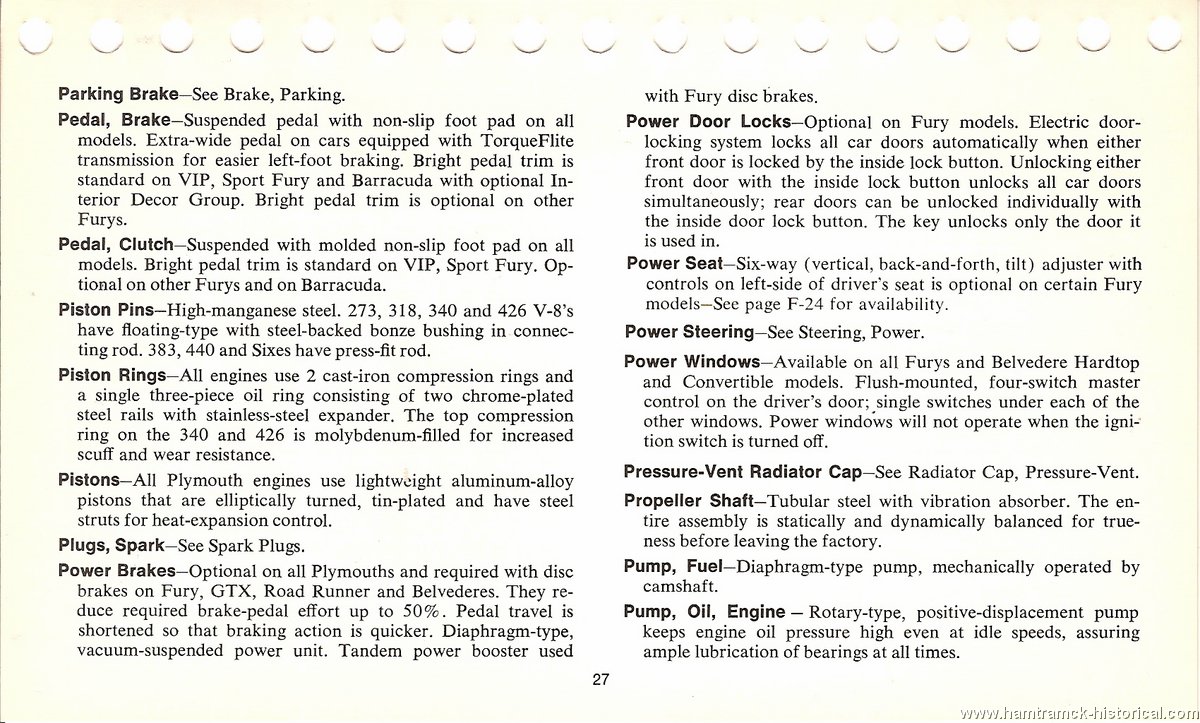

Image: 69_Plymouth_Index_Specs0027
Parking Brake - Pump, Oil, Engine

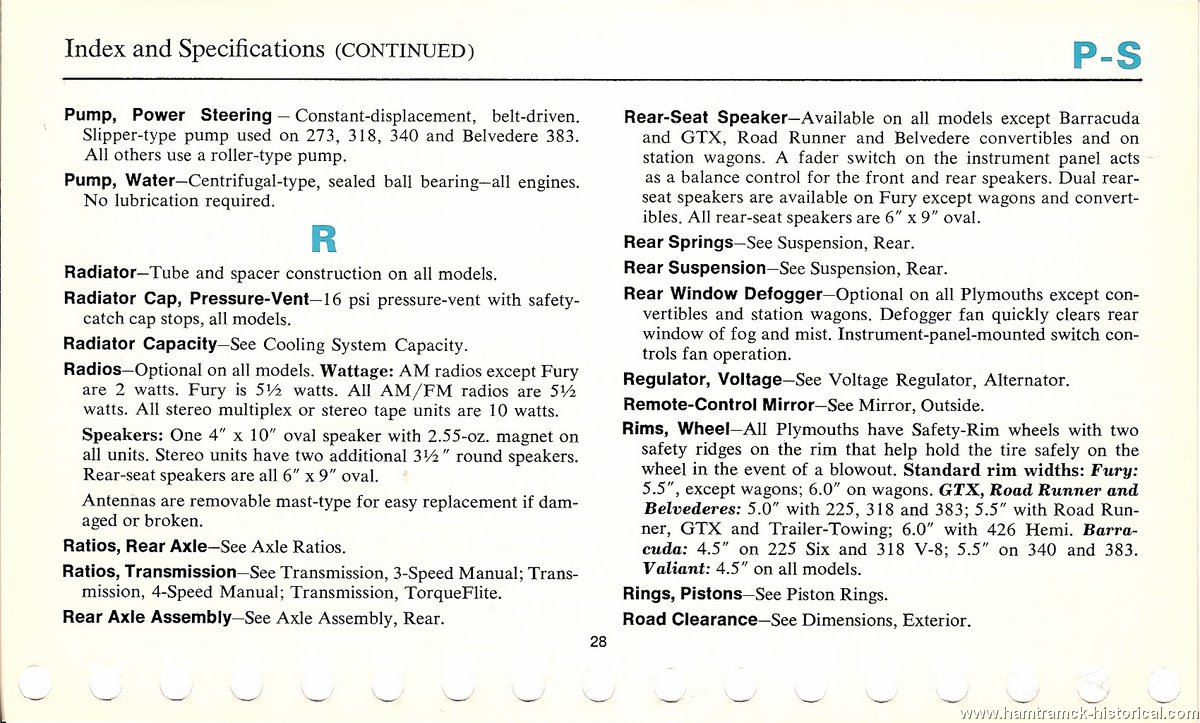

Image: 69_Plymouth_Index_Specs0028
Pump, Power Steering - Road Clearance

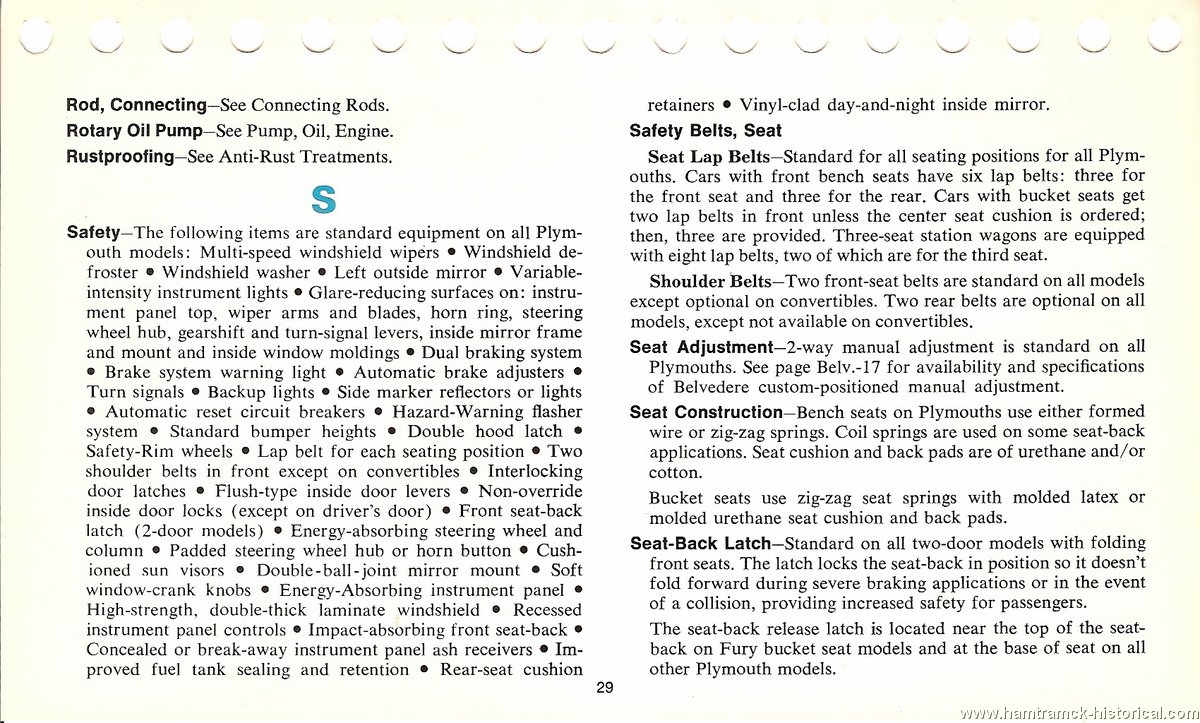

Image: 69_Plymouth_Index_Specs0029
Rod, Connecting - Seat-Back Latch

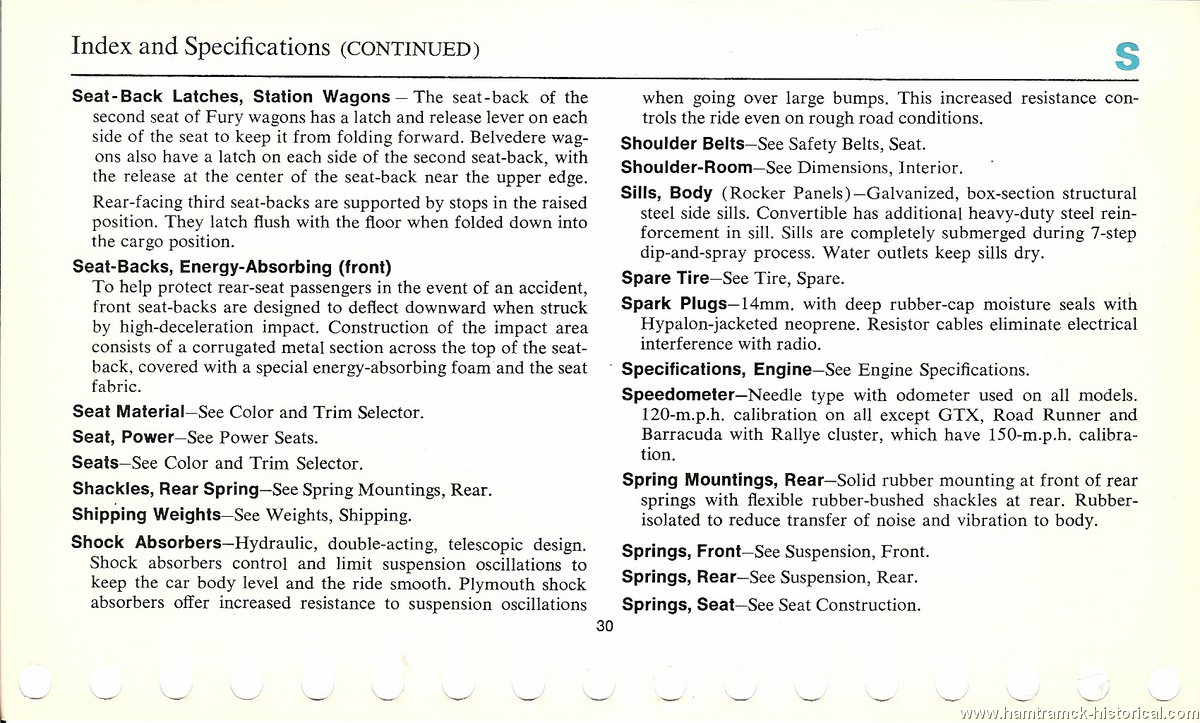

Image: 69_Plymouth_Index_Specs0030
Seat-Back Latches, Station Wagons - Springs, Seat

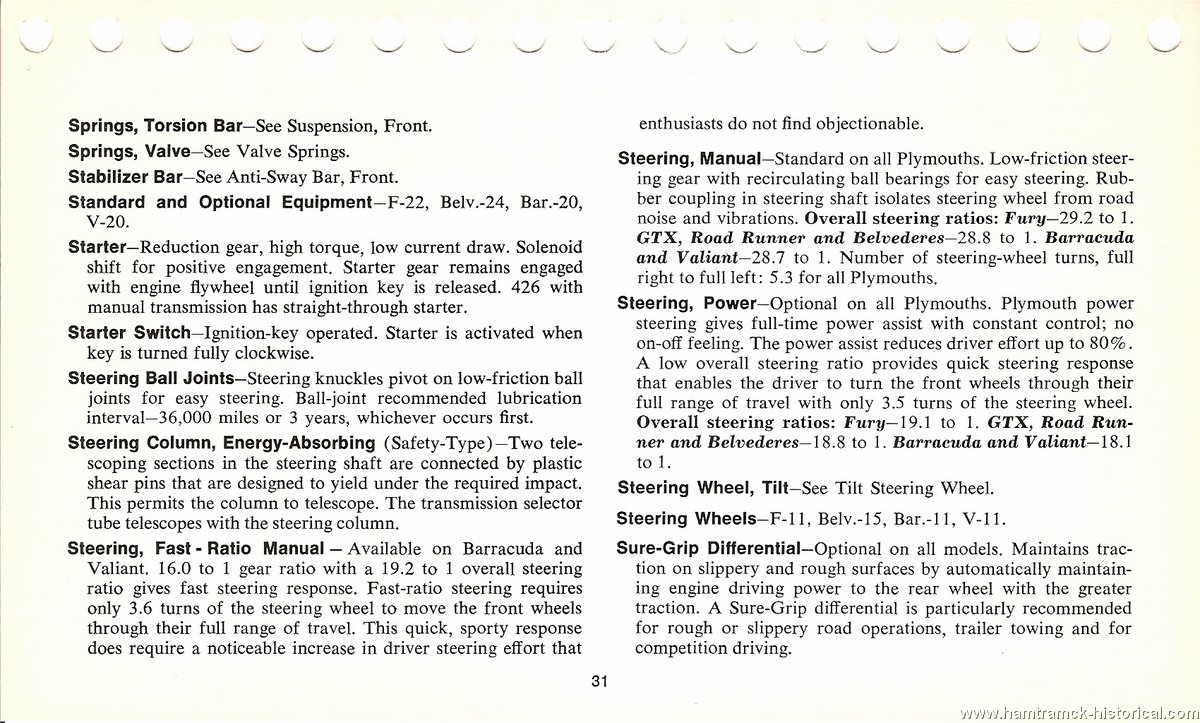

Image: 69_Plymouth_Index_Specs0031
Springs, Tortion Bar - Sure-Grip Differential

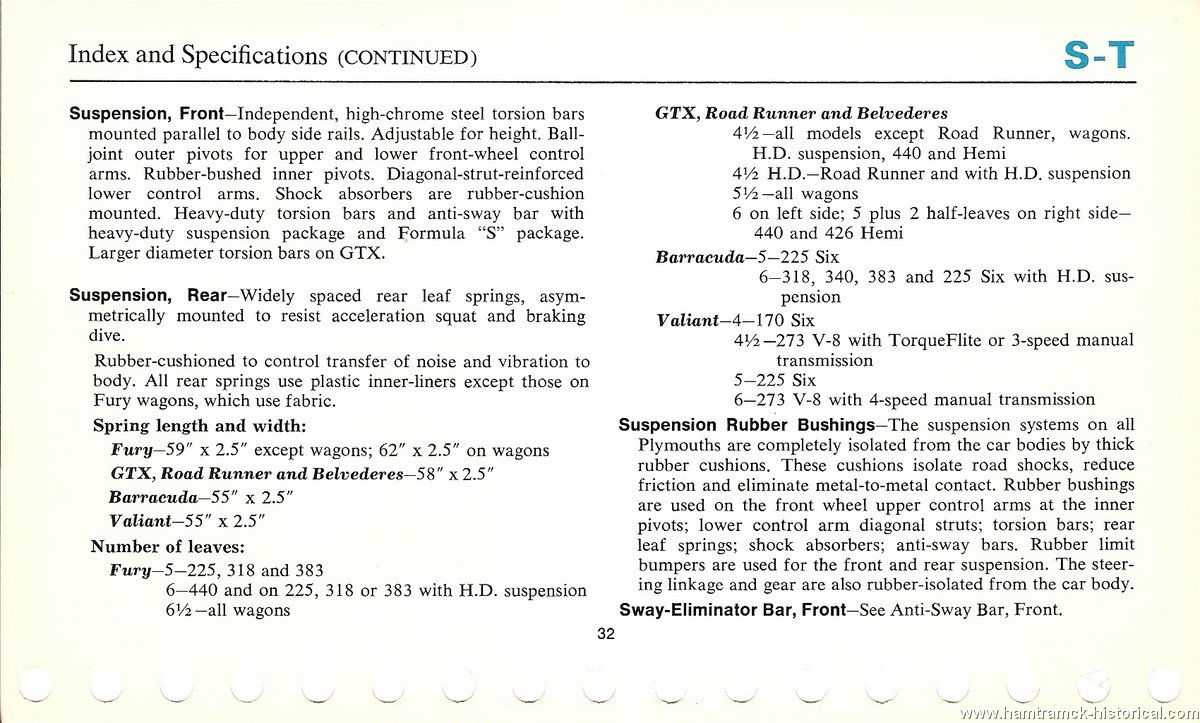

Image: 69_Plymouth_Index_Specs0032
Suspension, Front - Sway-Eliminator Bar, Front

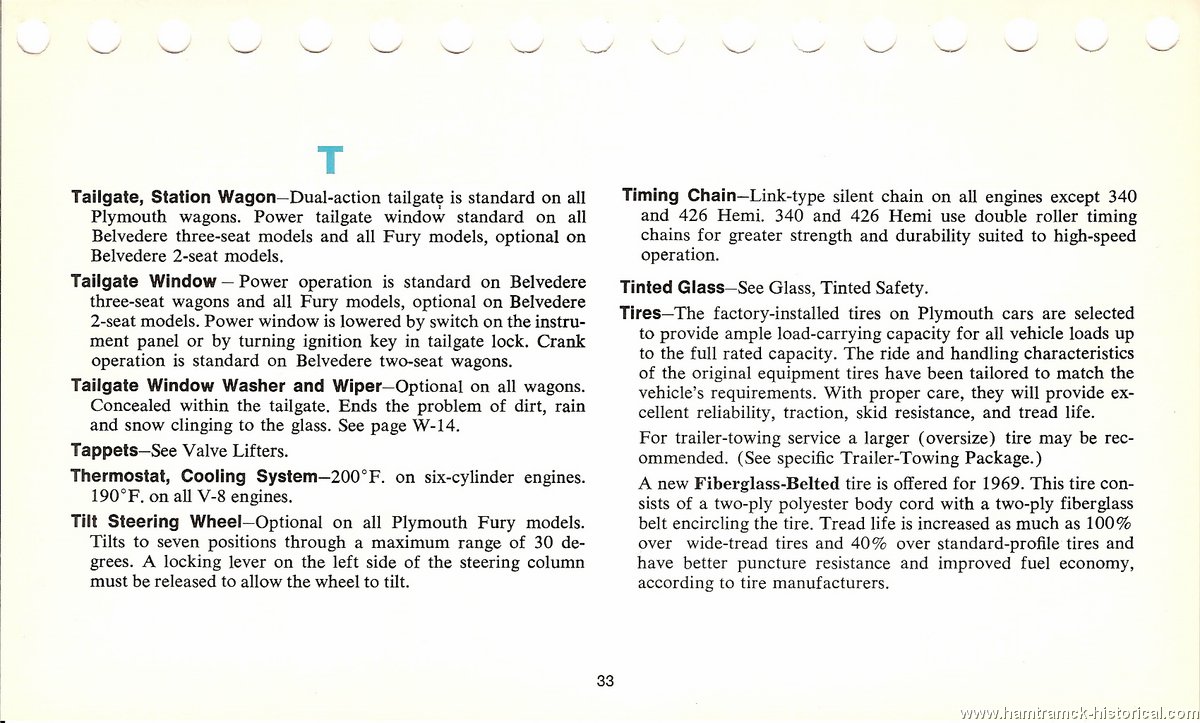

Image: 69_Plymouth_Index_Specs0033
Tailgate, Station Wagon - Tires

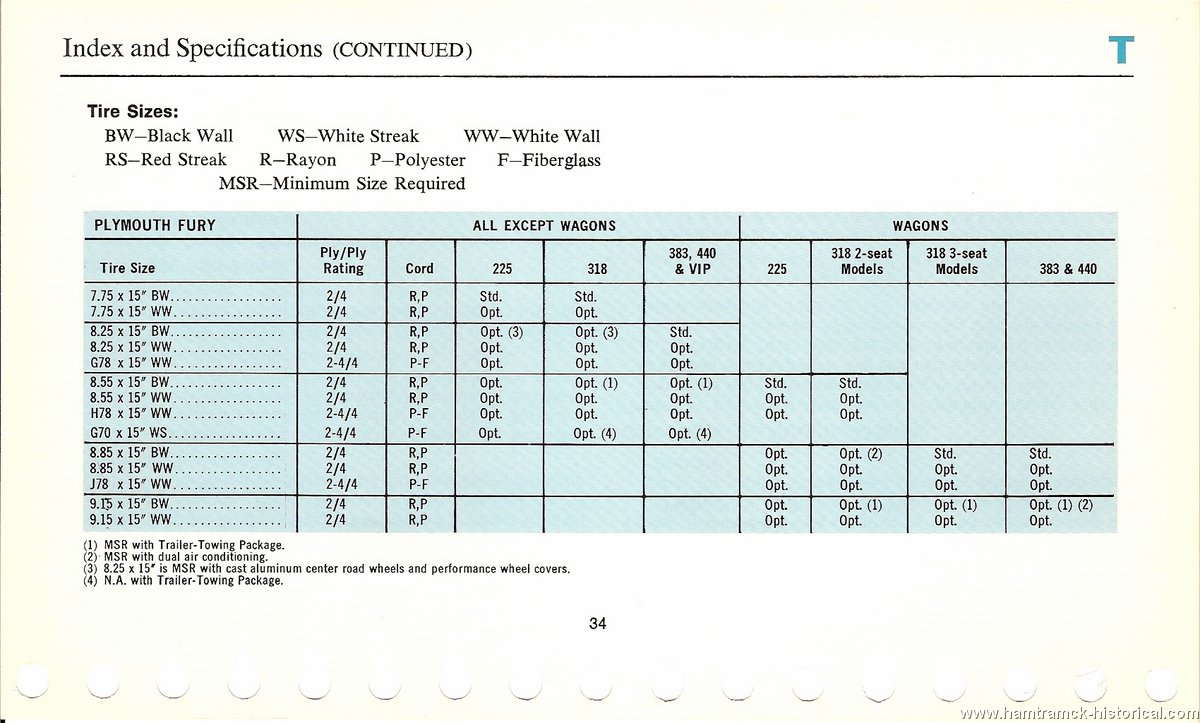

Image: 69_Plymouth_Index_Specs0034
Tire Sizes

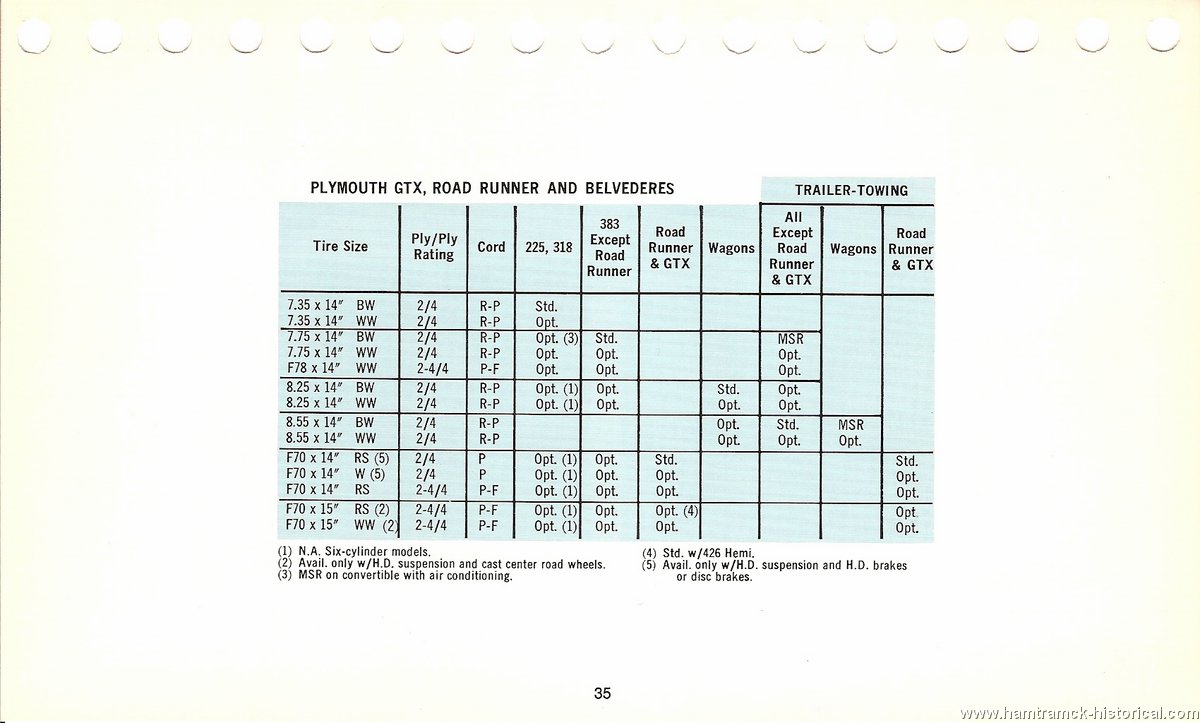

Image: 69_Plymouth_Index_Specs0035
Tire Sizes: Plymouth GTX, Road Runner and Belvederes

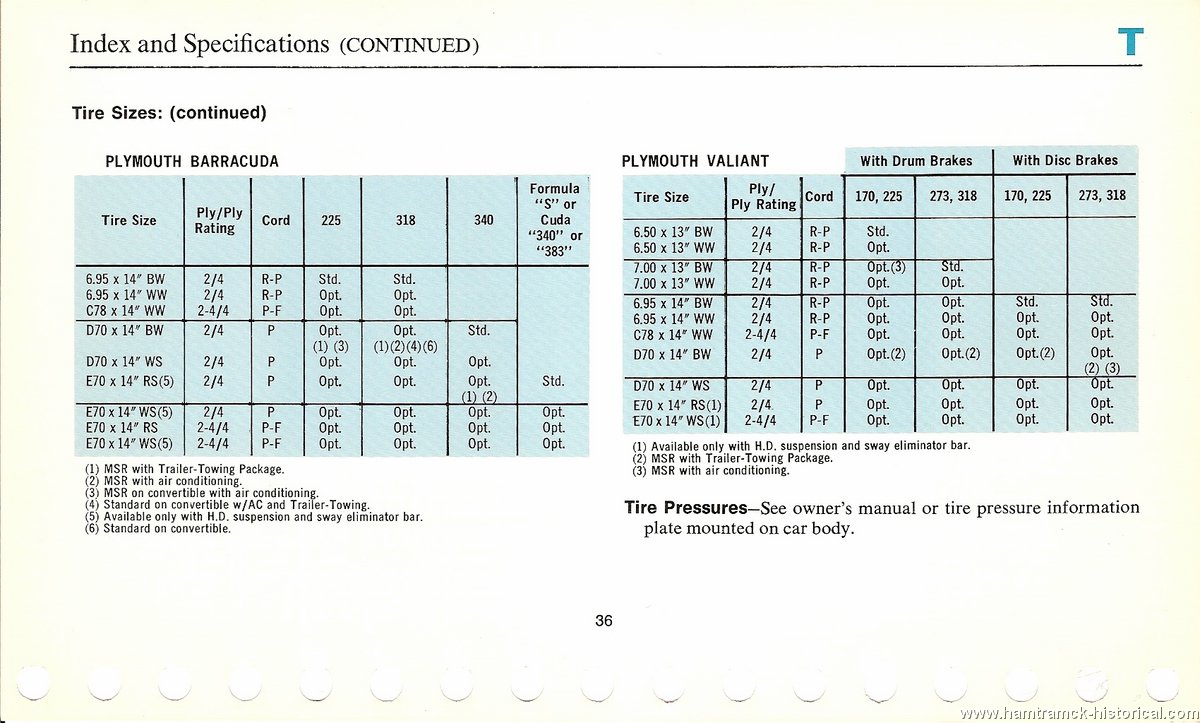

Image: 69_Plymouth_Index_Specs0036
Tires Sizes: Barracuda, Valiant - Tire Pressures

Image: 69_Plymouth_Index_Specs0037
Tire, Spare - Trailer-Towing Package

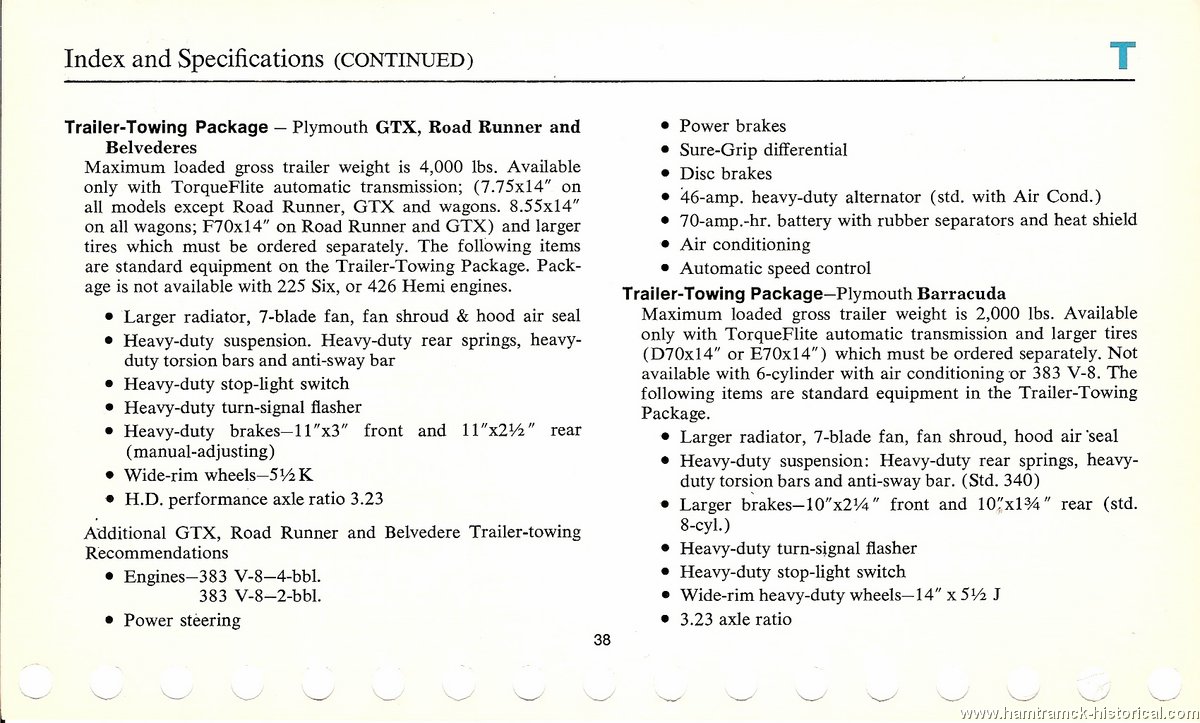

Image: 69_Plymouth_Index_Specs0038
Trailer-Towing Package

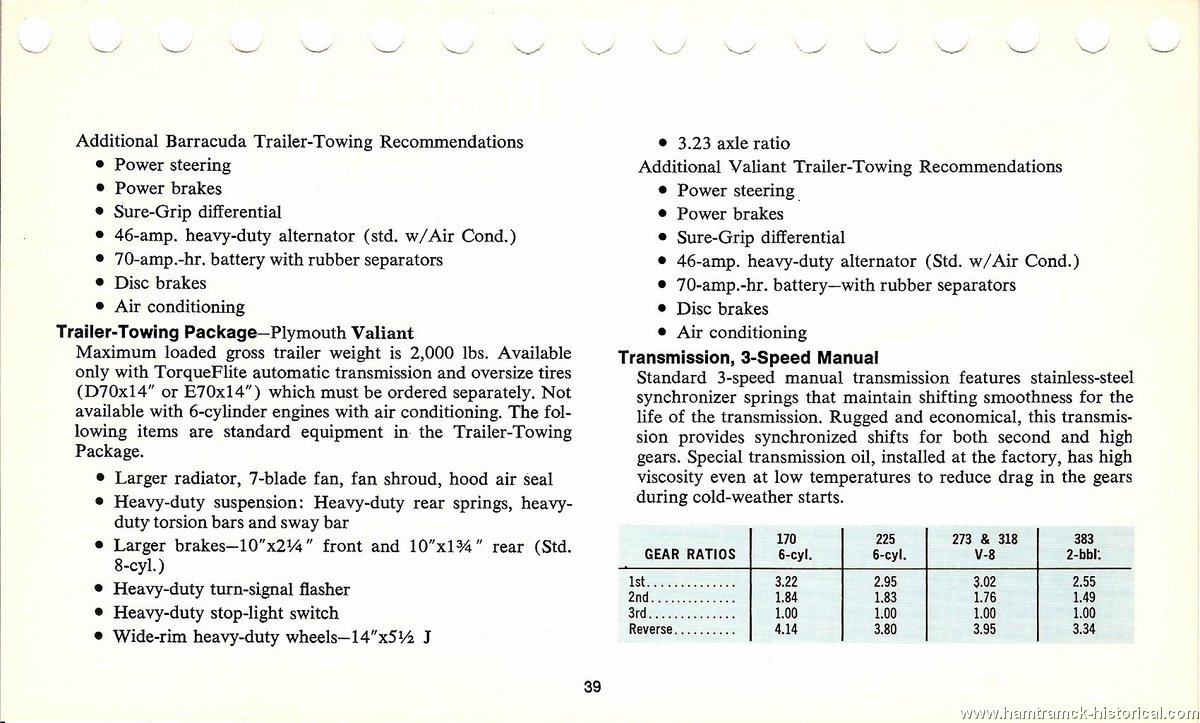

Image: 69_Plymouth_Index_Specs0039
Trailer-Towing Package - Transmission, 3-Speed Manual

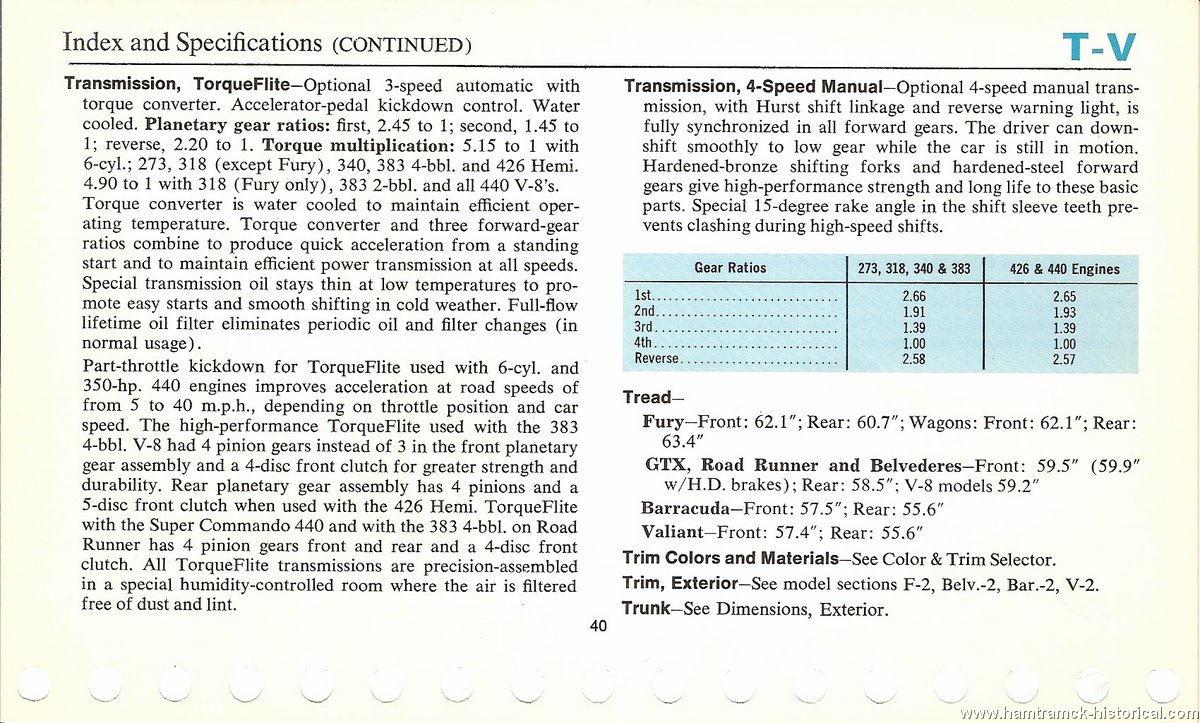

Image: 69_Plymouth_Index_Specs0040
Transmission, TorqueFlite - Trunk

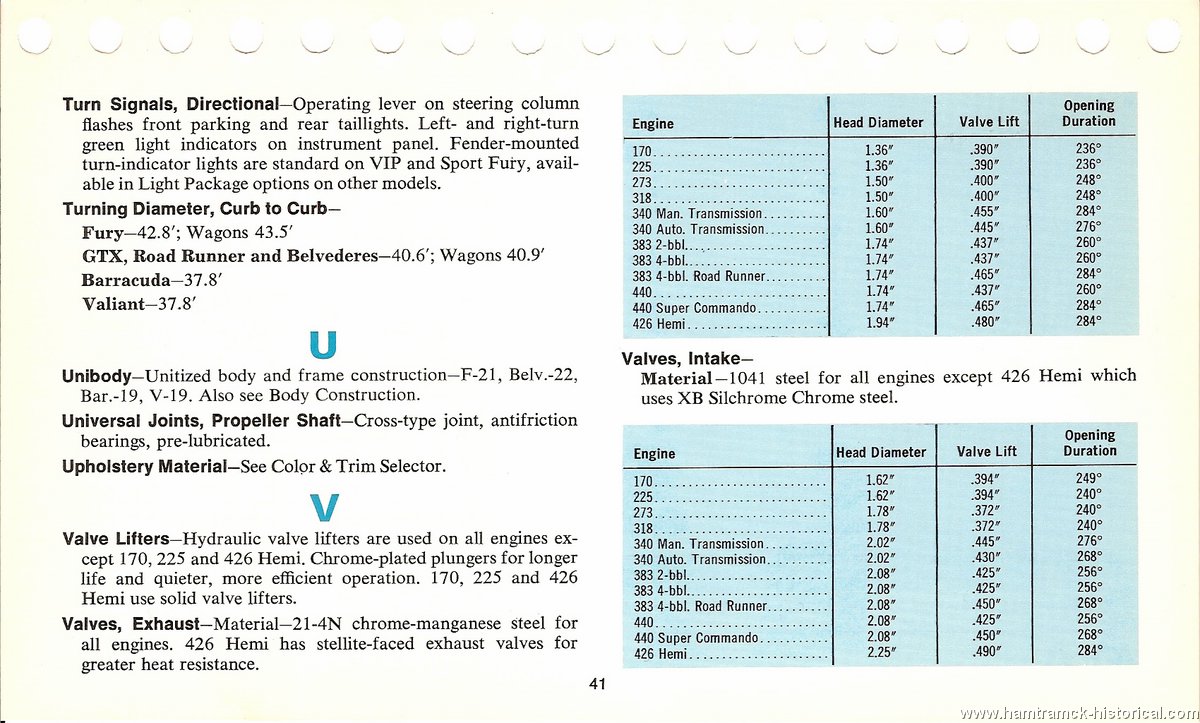

Image: 69_Plymouth_Index_Specs0041
Turn Signals, Directional - Valves, Intake

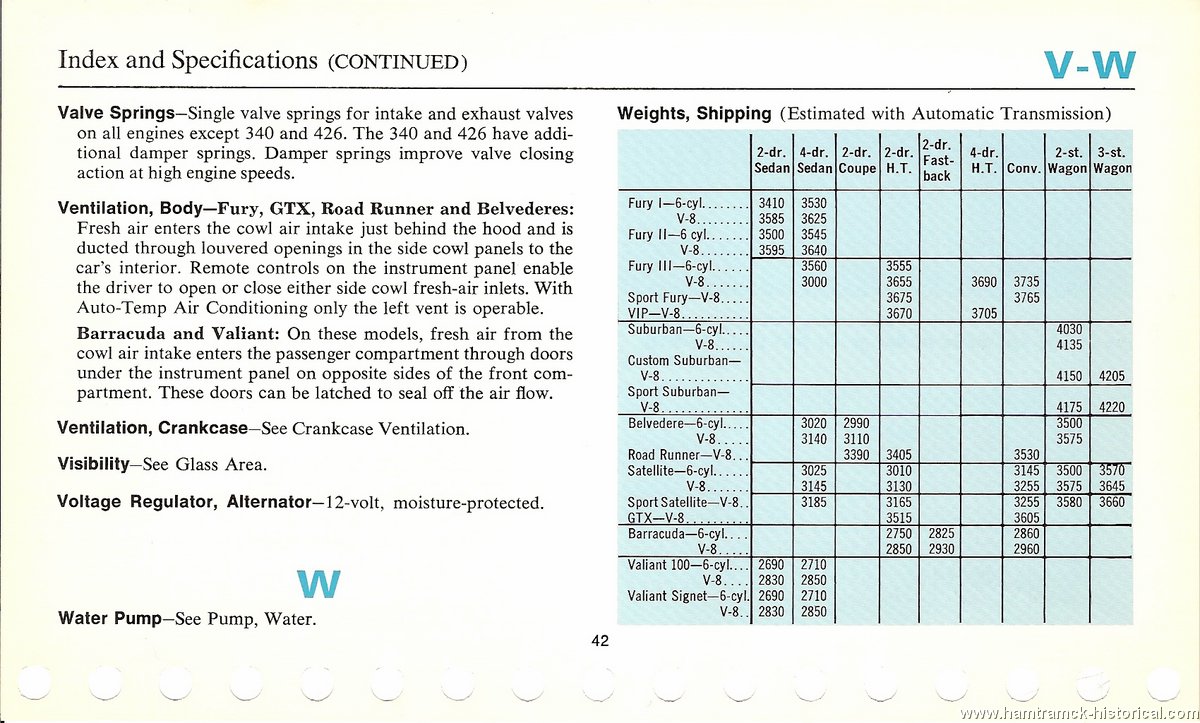

Image: 69_Plymouth_Index_Specs0042
Valve Springs - Weights, Shipping

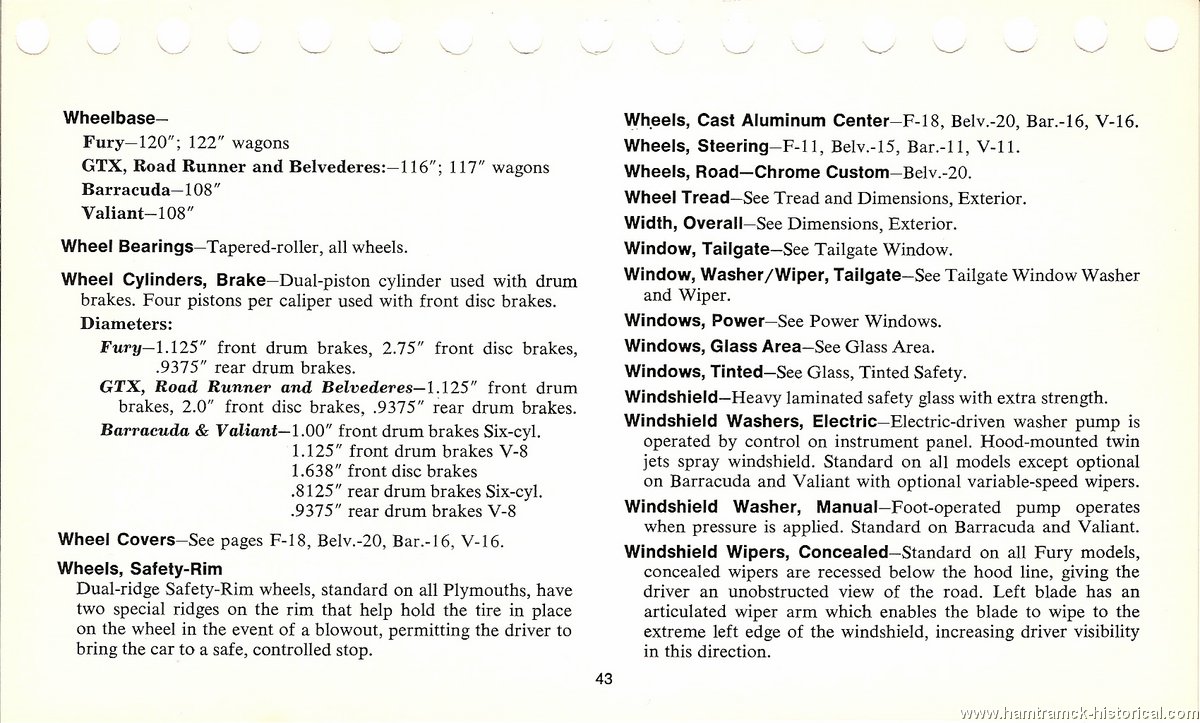

Image: 69_Plymouth_Index_Specs0043
Wheelbase - Windshield Wipers, Concealed

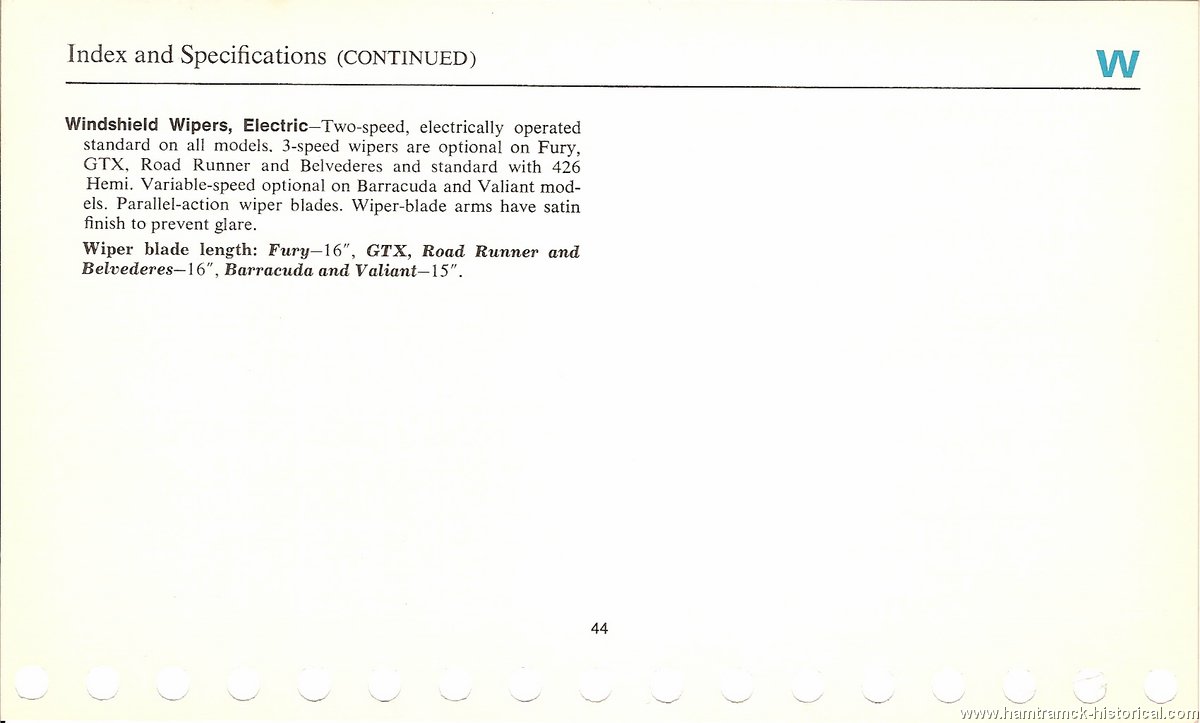

Image: 69_Plymouth_Index_Specs0044
Windshield Wipers, Electric
